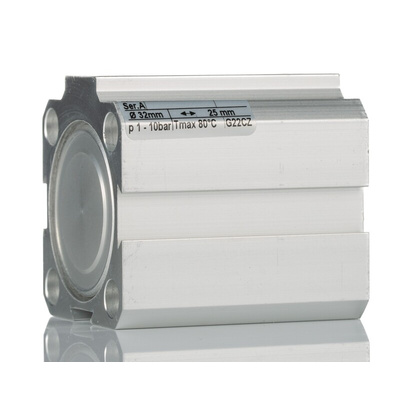

RM/92032/M/25, Norgren Pneumatic Compact Cylinder - 32mm Bore, 25mm Stroke, RM/92000/M Series, Double Acting

2129323
Номер производителя: RM/92032/M/25Производитель: Norgren
Цена за шт.
48835.80 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

IMI Norgren Pneumatic Compact Cylinder, Anodised Aluminium, G1/8 Port Connection - RM/92000/M Series - RM/92032/M/25

Set your automated system in motion using this pneumatic compact cylinder from IMI Norgren. It's a double-acting unit that has two openings through which air drives the piston rod to create a linear movement. Thanks to a G1/8 threaded connection, you'll find it's a cinch to attach to a port without reaching for any specialist tools. A broad operating temperature range between -5°C and +80°C means you can put this trusty cylinder to the test in harsh industrial environments.

• Stainless steel piston rod resists corrosion for durability
• Operating pressure range between 1 and 10 bar for safe use in low-pressure conditions
• Tough anodised aluminium alloy body is resistant to hard impacts

Applications

• Marine engineering
• Food and beverage production
• Automotive industry
• Medical devices

The IMI Norgren RM92000/M series double acting pneumatic rounline cylinder with magnetic piston and non-cushioned. It has a 32mm cylinder diameter and 25mm stroke. The operating pressure is ranges between 1 bar and 10 bar. It is a low frication, long life seal design.

What's the difference between a single-acting and a double-acting pneumatic cylinder?

Port size = G1/8
Piston rod = 16mm
Material = anodised aluminium alloy
Operating temperature = -5°C and 80°C

A single-acting cylinder has one opening through which air drives the piston rod, and it typically comes with a spring return that resets the piston to its original position. Double-acting pneumatic compact cylinders have two openings that move the piston rod forward and backwards smoothly and efficiently.

Техническая спецификация
pdfDatasheet - RM/92032/M/25
Давление - максимальное рабочее:
10 бар
Действие:
Double
Диаметр:
32мм
Отверстие:
32мм
Пневматическое соединение:
G 1/8
Производитель - серия:
RM/92000/M
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-5°C
Род резьбы поршневого стержня:
Female
Ход:
25мм
