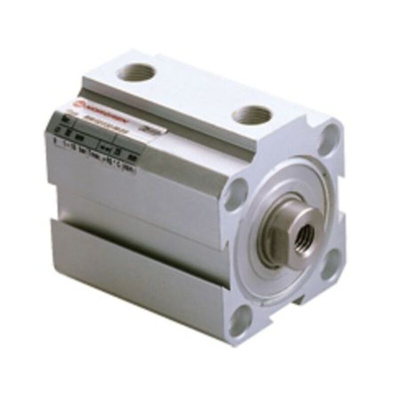

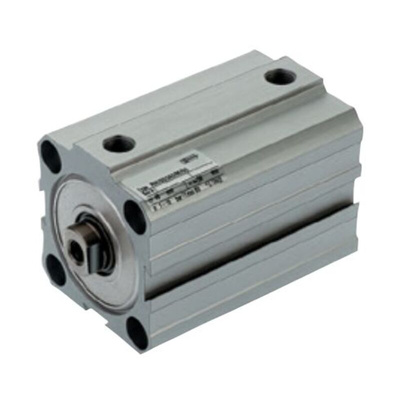

RM/92032/M/30, Norgren Pneumatic Compact Cylinder - 32mm Bore, 30mm Stroke, RM/92000/M Series, Double Acting

IMI Norgren Pneumatic Compact Cylinder, G1/8 Port Connection, 16mm Piston Rod Diameter - RM/92000/M Series - RM/92032/M/30

Looking for a linear motion solution that punches above its weight? Choose this pneumatic compact cylinder from IMI Norgren. It uses a magnetic operating function, which means fewer moving parts are needed, so it's easy to manage and needs minimal maintenance. An operating pressure range between 1 and 10 bar means it's a handy option for a wide variety of industrial applications. This assembly's built to last, thanks to a robust anodised aluminium alloy barrel and a steel rod that shrugs of dents and dings.

Features & Benefits

• NBR seals keep system pressure constant and resist corrosion, for a long service life
• Double-action type means compressed air is driven through a port at each end to support high airflow and accurate control
• Operates at its best in a wide temperature range between -5°C and +80°C
• Delivers up to 483N thrust on the outstroke to handle demanding applications

Applications

• Industrial automation
• Medical and pharmaceutical industries
• Mining and minerals processing

What media can I use this cylinder with?

As it's compatible with lubricated, non-lubricated and filtered compressed air, this is a versatile option that fits easily into existing networks.

Datasheet - RM/92032/M/30
