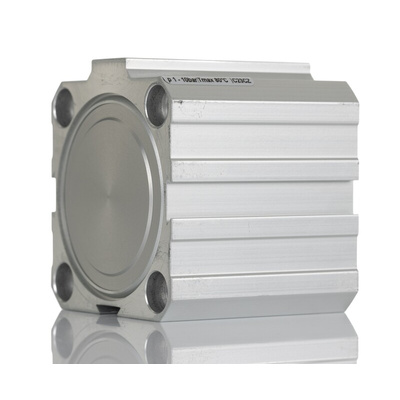

RM/92050/M/25, Norgren Pneumatic Compact Cylinder - 50mm Bore, 25mm Stroke, RM/92000/M Series, Double Acting

IMI Norgren Pneumatic Compact Cylinder, Threaded Connection, -5°C to +80°C Operating Temperature Range - RM/92000/M Series - RM/92050/M/25

As compressed air moves through your machinery, turn it into linear motion with this pneumatic compact cylinder from IMI Norgren. The unit's double acting, meaning it has two open ports to let air in and out, and this pushes the piston rod back and forth to create movement. Impact and corrosion won't bother this cylinder, thanks to its rugged stainless steel housing. To seal the deal, this cylinder comes with durable PUR rings, which prevent air from leaking out.

Features & Benefits

• Tough anodised aluminium alloy body resists mechanical wear
• Widely compatible G1/8 port is threaded to achieve a speedy tool-free connection
• Robust PUR seals are resistant to oils and solvents

Applications

• Conveyor systems
• Packaging machinery
• Oil and gas industry
• Printing presses

What's the operating pressure of the pneumatic compact cylinder?

This product has an operating pressure range between 1 and 10 bar, making it suitable for lower-pressure environments.

What size is this cylinder?

With a compact external dimension of 68 (L) x 63 (W) x 68.5mm (H), you can fit the component into tight spaces in your pneumatic system.

Datasheet - RM/92050/M/25
