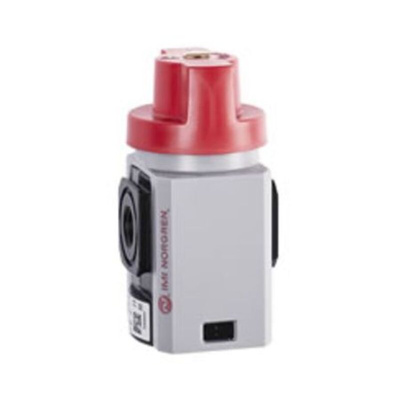

T82T-2GA-B1N, Norgren Locking Shut-Off Valve 2/3 Pneumatic Manual Control Valve T82T Series, G 1/4, 4-Jan, III B

IMI Norgren Pneumatic Shut-Off Valve, 0.2kg Weight, 17 Bar Maximum Operating Pressure - T82T Series - T82T-2GA-B1N

Make managing the flow of compressed air a breeze with this pneumatic manual control valve from IMI Norgren. It has a 3/2 function to effectively distribute air throughout your setup and stop the flow when needed. Use it to support smooth running in applications that call for a maximum pressure of 17 bar. NBR seals prevent leakages as they're both hard-wearing and corrosion-resistant, which ensures the valve can take the strain. A die-cast aluminium body offers high tensile strength, meaning this contender really punches above its 200g weight.

• 45dm3/s flow rate delivers high output performance
• Can be padlocked to enhance security when in the closed position
• G1/4 port for wide compatibility
• Flexible design allows modular or in-line installation for enhanced versatility

Applications

• Oil and gas production
• Mining and mineral processing
• Food and beverage industry

The IMI Norgren T82T pneumatic manual valve is a 3/2-way shut-off, manually operated, lockable in closed position with padlock. The valve housing is made of aluminium with brass valve.

Can I use this device in harsh conditions?

Port size = G1/4
Flow rate = 45dm3/s
Operating pressure = 17bar
Ambient temperature = -20°C to 65°C
Medium = compressed air

Yes. This control valve delivers reliable service in temperatures ranging between -20°C and +65°C, so it's suitable for use in harsh conditions.
