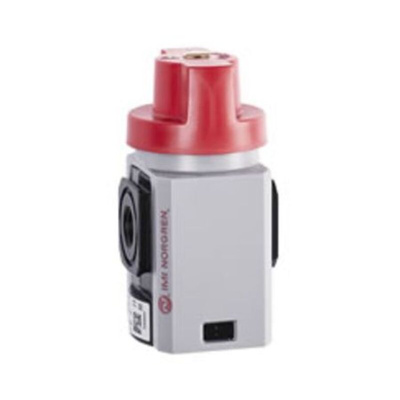

T82T-3GA-B1N, Norgren Locking Shut-Off Valve 2/3 Pneumatic Manual Control Valve T82T Series, G 3/8, 8-Mar, III B

IMI Norgren Pneumatic Shut-Off Valve, Die-Cast Aluminium Body, 0.2kg Weight - T82T Series - T82T-3GA-B1N

Looking to switch from automated to manual management of your compressed air system? Choose this pneumatic manual control valve from IMI Norgren. It's a 3/2 unit with three connection ports and two positions to put you in full command of your setup. Its threaded exhaust port makes connection with other devices simple, so you don't get yourself in a twist during installation. A brass valve and die-cast aluminium body make this unit resistant to mechanical stress and corrosion, so you can be sure it'll last the course.

• 41dm3/s flow rate offers effective performance for applications that demand high output
• Light 0.2kg weight minimises strain on the mounting surface
• G3/8 port fits with standard pipe thread specifications for convenience
• Padlock-compatible for boosted security when not in use
• Accommodates modular or in-line installation for versatility

Applications

• Factory automation
• Medical and pharmaceutical industries
• Warehouses and distribution facilities

The IMI Norgren T82T pneumatic manual valve is a 3/2-way shut-off, manually operated, lockable in closed position with padlock. The valve housing is made of aluminium with brass valve.

Does this device function in tough environments?

Port size = G1/4
Flow rate = 41 dm3/s
Operating pressure = 17bar
Ambient temperature = -20°C to 65°C
Medium = compressed air

Yes. This component operates in a temperature range between -20°C and +65°C, so it's ideal for use in tough environments.
