V10013-D01, Norgren Mini ISO 3P+E DIN 43650 DIN 43650 Solenoid Connector, 250 V ac/dc Voltage

IMI Norgren DIN 43650 Solenoid Connector, Insulated, 1m Cable Length - Mini ISO Series - V10013-D01

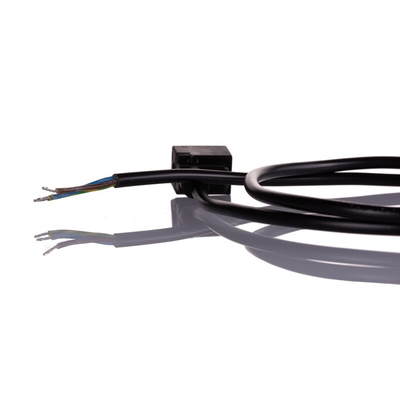

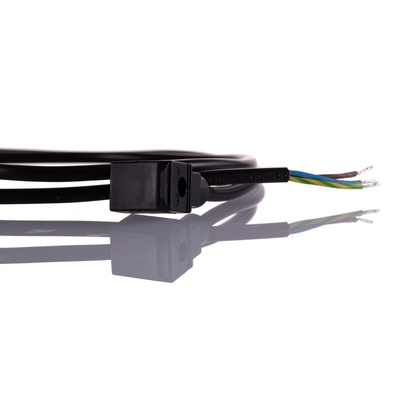

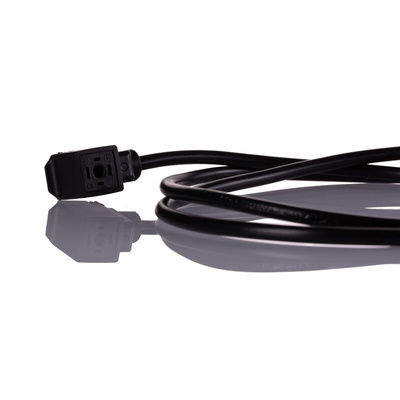

This DIN 43650 solenoid connector from IMI Norgren makes a durable electrical connection between a solenoid valve and its power supply. For reliability, it's not affected by voltage surges or EMI, so there's minimal risk of power spikes or crosstalk interfering with functionality. Robust polyamide housing withstands wear and abrasion, making the unit well-suited to use in harsh environments. This material also resists corrosion, so is compatible with humid operating conditions. The connector comes with a 1m cable that makes it quick and easy for you to hook up.

Features & Benefits

• IP65-rated enclosure is dust-tight and protected against water jets from any angle
• Compact dimensions of 37 (L) x 27 (H) x 16mm (W) to help maximise packing efficiency in your pneumatic circuit
• Insulated for safety, so there's minimal risk of electric shocks

Applications

• Machine building
• Tooling and equipment manufacturing
• Pressure sensors and switches
• Marine industry

Does this solenoid connector have a moulded cable?

Yes, this unit has a durable moulded cable to protect the assembly's wires from rough handling and ensure an extended service life.

Datasheet - V10013-D01
