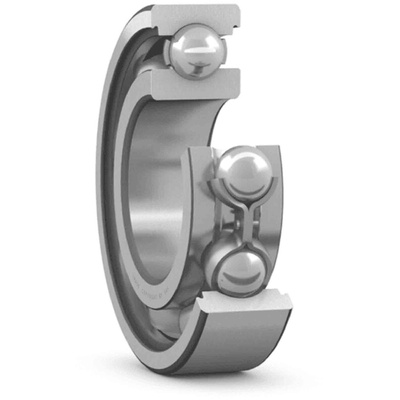

SKF 6214/C3 Single Row Deep Groove Ball Bearing- Open Type 70mm I.D, 125mm O.D

SKF Ball Bearing, Deep-Groove Bearing Type, 70mm ID, 125mm OD - 6214/C3

Need a versatile bearing that can handle loads travelling in both directions? Turn to this single-row ball bearing from SKF. It's a deep-groove type that accommodates radial and axial loads, which makes it a popular choice. Thanks to a dynamic load rating of 63.7kN, it reliably carries large moving loads in demanding applications. You can attach the unit to your equipment using either mechanical or hot mounting methods, making it a flexible choice. During operation, it minimises friction, to limit noise and vibration and promote smooth running.

Features & Benefits

• Race width of 24mm for installation in more compact systems
• Robust sheet metal cage for effective shock resistance
• High limiting speed of 7000rpm to suit fast-moving devices
• Wide operating temperature range of -40°C to +100°C for use in tough industrial conditions

Applications

• Domestic appliances
• HVAC systems
• Automotive industry

Can I preload this ball bearing for a high-precision application?

Yes, you can preload this unit. Its radial internal clearance rating of C3 indicates it has large spaces between its rings, making it suitable for preloading in processes that demand precision.

Datasheet - 6214/C3

SKF Bearing Designations

Datasheet - 6214/C3
