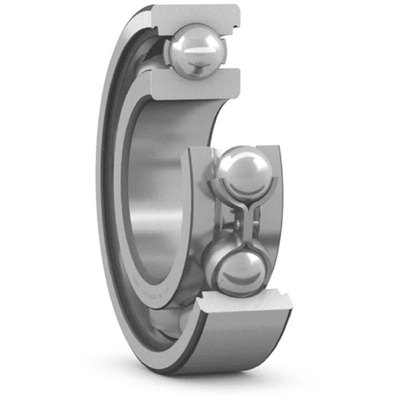

SKF 6313 Single Row Deep Groove Ball Bearing- Open Type 65mm I.D, 140mm O.D

SKF Ball Bearing, Deep-Groove Bearing Type, 2.11kg Weight, 65mm ID, 140mm OD - 6313

Don't let friction slow down moving parts of your equipment – keep things going smoothly with this ball bearing from SKF. It rolls along with your machine's shaft, carrying the load and distributing it to contact points on its raceway. As a deep-groove type, this unit handles both axial and radial loads without a hitch, making it a versatile workmate. Its inside diameter of 65mm makes it the right fit for larger shafts. Thanks to the open-ended design, you can easily keep an eye on it during operation and top-up grease as necessary.

Features & Benefits

• Static load rating of 60kN and dynamic load rating of 97.5kN make it the right choice for heavy-duty applications
• Limiting speed of 6,700r/min and reference speed of 10,000r/min for use with fast-paced machinery
• 33mm race is precision-engineered for smooth movement of the rolling parts
• Steel body holds out against wear and impact to deliver a long service life

Applications

• Grinding machines
• Pharmaceutical production plants
• Foundries

What's the temperature tolerance of this ball bearing?

This unit is heat-stabilised up to +120°C, making it suitable for use in demanding conditions.

Datasheet - 6313

SKF Bearing Designations
