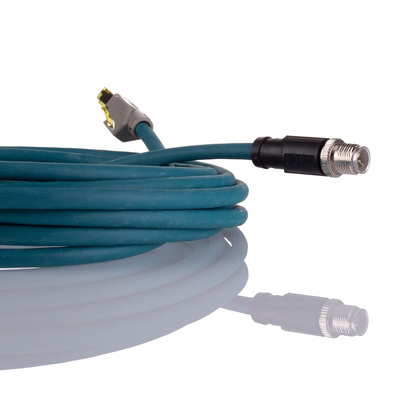

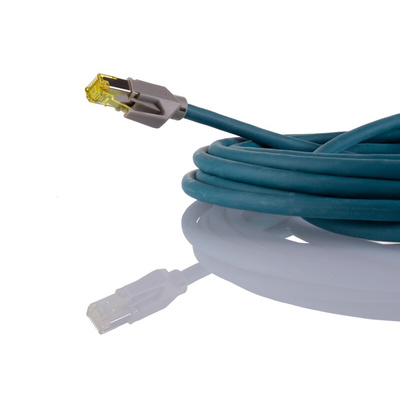

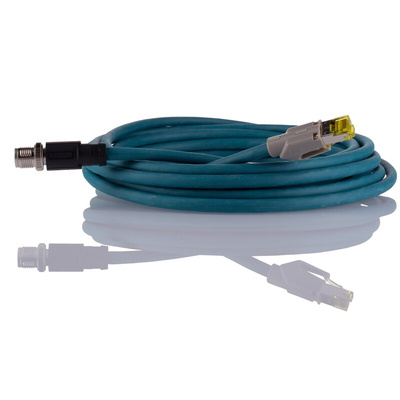

1407473, Phoenix Contact Cat6a Straight Male M12 to Straight Male RJ45 Ethernet Cable, Blue, 5m

Phoenix Contact Sensor Actuator Cable, 26 AWG, 48V AC / 60V DC Voltage Rating - NBC-M12MSX/ 5,0-94F/R4AC - 1407473

Connect your control units with this sensor actuator cable from Phoenix Contact. It's a CAT6a network lead with transmission speeds of 10Gbps to support fast and reliable signal transfers in high-capacity systems. For quick and easy installation, simply plug in the cable using its pre-terminated connectors. A 5-metre cord length means you'll find it easy to join devices in larger work areas.
For safety, the IP67-rated M12 connector is dust-tight and waterproof, while the RJ45 adapter carries an IP20 finger-proof rating. A minimum bend radius of 25.6mm makes installation easy in confined spaces.
The cable is encased in a hardwearing polyurethane sheath to protect it against chemical, abrasive and corrosive damage in heavy-duty environments. Its highly-conductive copper conductors deliver strong signals for optimal performance, with EMI-limiting aluminium shielding to ensure steady data feeds. Install this component in automated and control operations, food and beverage processing and automotive applications.

Features & Benefits

• Blue jacket for easy identification in complex networks
• Broad operating temperature range between -25°C and +90°C for use in harsh conditions
• Compliance with the IEC 61076-2-109 standard assures you the M12 connector meets quality and safety standards
• RoHS compliance shows the component contains only trace amounts of any harmful materials

Datasheet - 1407473

2130155_Line Drawing

Instruction Sheet - Length Tolerances

Line Drawing - 1407473
