C9-R21N, Releco Plug In Latching Power Relay, 24V dc Coil, 5A Switching Current, DPDT, Реле

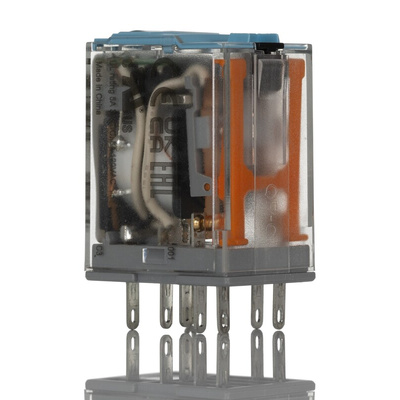

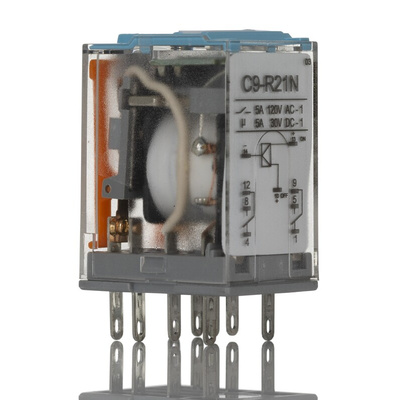

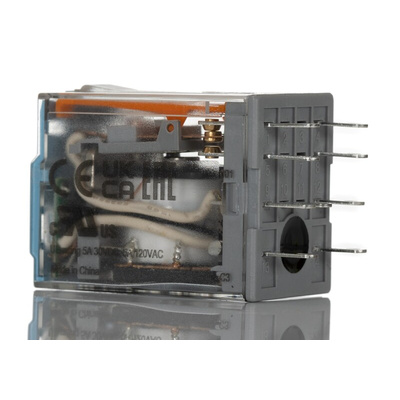

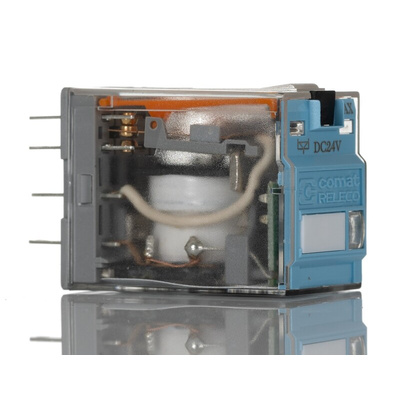

Releco Miniature Remanence Relay

The Releco miniature remanence relay has two changeover contacts and switching current 5A. It is a DC powered plug-in type latching relay with bi-stable switching. This means that the current switching state is retained, irrespective of the excitation. The contacts can be switched OFF by pulsing the reset input. It has a test button that is colour coded and has dual functions like a push to test or lift to latch. There is a removable marking label fitted to each relay. Its meticulous design makes it particularly suitable for industrial applications and installation engineering. This miniature type relay is ideally suited for applications that need space-saving.

Features and Benefits

24VDC supply rating coil
9-terminal multipole connector
Contact material is silver-nickel (AgNi)
DPCO contact configuration
Mechanical flag indicator as standard
Operating temperature ranging between -40°C and 60°C

Applications

Anti-condensation equipment
Car washing equipment
Coffee machines
Commercial cooking equipment
Driers and pumps
HVAC
Industrial cleaning equipment
Refrigeration

Certifications

CCC certified
CE approval
cRUus certified
cULus certified
EAC certified
LROS certified

Approvals

UL; LLOYD'S; CSA; SEV; NEMKO; SETI; SEMKO; DEMKO; OVE
