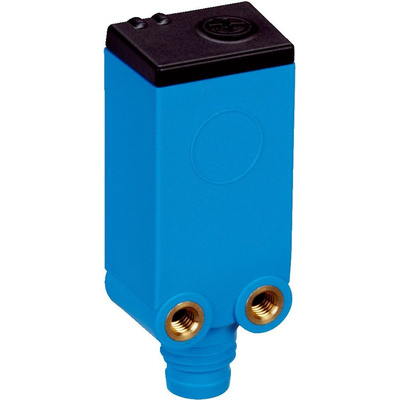

CQ4-08EPSKP1, Sick CQ Series Capacitive Block-Style Proximity Sensor, 1 → 6 mm, 1 → 8 mm Detection, PNP Normally Open

Overview

At a glance

Rectangular housing
Detects powders, granulates, liquids and solids
Extremely high electromagnetic compatibility
Electric version: DC, 4 cables
Supply voltage: 10 V ... 36 V DC
Short-circuit protection (pulsed)

Your Benefit

Non-contact level measurement, even through container or tank walls, which eliminates drilling holes and thus reduces installation time
Durable housing withstands harsh industrial applications, reducing maintenance costs
Quick and easy adjustment of the switching point - via pushbutton, remote teach for the CQ28 and via potentiometer for CQ35 - saves time
Simple and safe detection alternative to photoelectric and inductive sensors in applications such as detecting product in a sealed box, container or tank

Capacitive proximity sensors can detect all types of material: powder-based, granulated, liquid, and solid – even through plastic walls. SICK’s capacitive proximity sensors also feature high electromagnetic compatibility (EMC), which prevents incorrect switching. CQ sensors feature rectangular housings that are suitable for all manner of installation conditions.

Applications

Monitoring the stock of bottle caps
Level measurement on the adhesive container
Level measurement on the adhesive container
Monitoring the stock of bottle caps
Toner fill level measurement
Level measurement for seed and fertilizer tanks

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - CQ4-08EPSKP1
