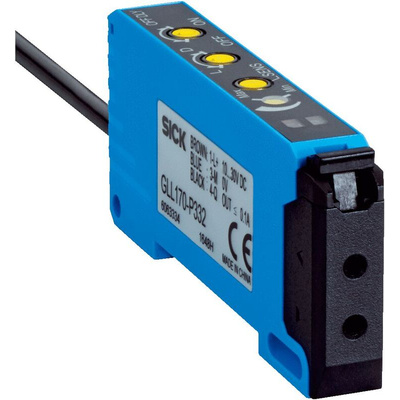

GLL170-P332 Detection Range, GLL170-P332 | Sick Glass, Plastic Fibre Optic Sensor 0 to 190 (Proximity System) mm, 0 → 800 (Through-Beam System) mm, PNP

Overview
At a glance
Intuitive operating conceptRapid response time of 50 μsSwitching threshold adjustment via potentiometer, or teach-in via pushbutton or cableIP 66 enclosure rating for high degree of ruggednessPNP/NPN switchover (teach-in variant)4-digit digital display (teach-in variant)Variable fixing conceptVarious connection types available
Your Benefit
User-friendly handling enables fast commissioningReliable detection even in rapid processesEasy to adjust with intuitive potentiometer or teach-in buttonRugged sensor housing enables mounting outside the control cabinetSensor parameters can be flexibly adapted to a diverse range of applications (teach-in variant)Easy monitoring of process parameters (teach-in variant)Quick and easy mounting on a mounting rail or using the fixing holes on the sensorCan be combined with fibers from the extensive SICK portfolio to form solutions for numerous applications
The GLL170 fiber-optic sensor is the reliable solution for all detection tasks in combination with the fibers in the LL3 product family. With its simple operating concept, the sensor is ideal for applications in harsh environments as well as when rapid response times are crucial. Different variants are available to suit all requirements: The GLL170 variant with potentiometer enables quick and easy commissioning thanks to its intuitive operation. The GLL170T variant with teach-in function features a display for direct sensor feedback and provides solutions for numerous applications with its range of adjustments. With a switching frequency of up to 10 kHz, this sensor can even handle rapid processes with ease.
Applications
Diverse applications in challenging ambient conditions which require an economical fiber-optic sensorEnvironments with limited spaceEnvironments with high temperaturesHandling and assembly technologyElectronics and solar industryPackaging and logistics industry
Note
Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
