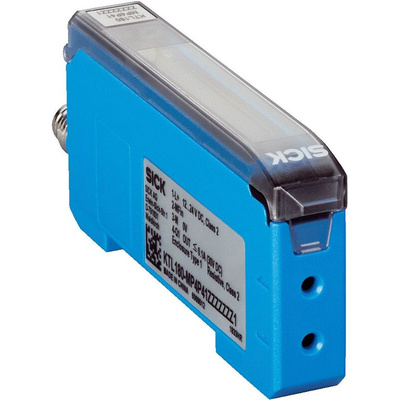

KTL180-MP4P41ZZZZZ, Sick Contrast Sensors, PNP, 100 mA, 12 → 24 V dc, IP50

Overview

At a glance

31.2 kHz switching frequency at a response time of 16 μs
High dynamic range
Multi-functional 7-segment display
Job save for easy format change
1-point, 2-point and dynamic teach-in
Master-slave function
A wide range of different fibers

Your Benefit

Very high switching accuracy: 31.2 kHz switching frequency for use in ongoing machine processes
Easy sensor handling: Multi-functional display enables flexible, user-friendly sensor settings
Safe detection and safe processes: Detection of very small contrast differences and high-gloss materials thanks to high grayscale resolution and manual switching threshold adjustment
Versatile use: Different teach-in operations for ideal sensor settings in different applications
Fast format change thanks to job save
Compact design for use with limited installation space

The KTL180 reliably detects contrast differences even at high machine speeds. Thanks to its 31.2 kHz switching frequency, a high grayscale resolution and manual switching threshold adjustment, the KTL180 makes for safe object detection. The response time of 16 μs ensures stable and accurate detection of contrast differences, for example with print marks, even for high-gloss materials. The sensor can be quickly adjusted to the respective application with the 7-segment display and easy menu guidance. Various teach-in processes as well as an integrated job save increase the flexibility during commissioning in a large range of applications - with very high process stability.

Applications

All applications for which contrasts make up the decisive feature
Applications with small installation space
Battery production
Printing mark detection
Printing process control
Tube filling
Cutting of labels
Splice detection

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - KTL180-MP4P41ZZZZZ
