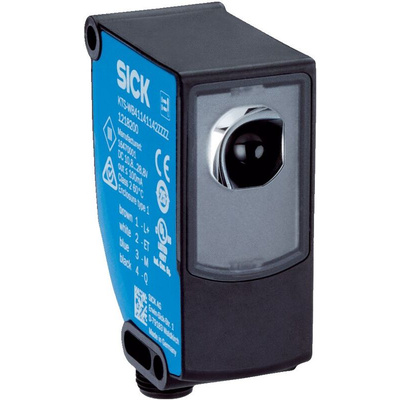

KTS-WB41141142ZZZZ Detection Range, KTS-WB41141142ZZZZ | Sick Contrast Sensors 13 mm, , PUSH/PULL, 100 mA, 10 → 30 V dc, IP67

Overview
At a glance
White LED or RGB LEDHigh gray line resolutionVery large dynamic range means reliable detection of contrasts on glossy materials25 kHz switching frequencyDisplay for easy sensor adjustment2-point and dynamic teach-inManual switching threshold adjustmentLight/dark switching
Your Benefit
High switching frequency for use in quick machine processes with high switching accuracy requirementsDisplay and flexible sensor settings for easy sensor handling and user-friendly operationHigh gray line resolution enables the detection of very small contrast differences and high-gloss materials - high process stability and fewer downtimesVarious teach-in processes for ideal sensor and process setting in different applicationsManual switching threshold adjustment supports stable material detection and individual sensor adaption to different contrasts
High performance for universal application in a range of applications: The new KTS Core in modern design with white LED or RGB LED and VISTAL® housing impresses with its switching frequency and gray line resolution, different teach-in variants and manual switching threshold adjustment. A response time of 20 μs and a jitter of 10 μs ensure reliable and accurate detection of contrast differences, e.g. in print marks, even on high-gloss materials. Thanks to various teach-in processes and manual switching threshold adjustment, commissioning is more flexible and detection more stable. The KTS Core detects even the smallest differences in contrast and is therefore well-suited for use in a wide range of applications.
Applications
Applications in which contrast is a decisive distinguishing featurePrint mark detection for controlling the cutting processPrint control in the print and paper industryPositioning of tubes when fillingLabel alignment on bottlesMonitoring of wafer surfacesRoll end monitoringContrast mark detection
Note
Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
