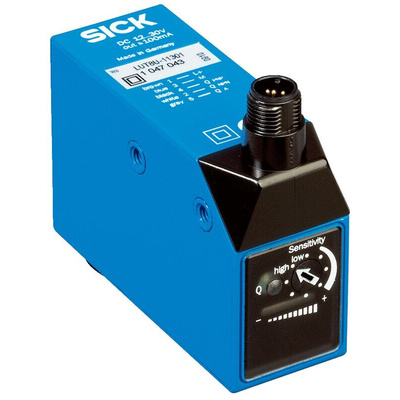

LUT8U-11201, Sick Light Intensity Sensors 20 mm, , NPN, PNP, 100 mA, 10 → 30 V dc, IP67

Overview

At a glance

Tough metal housing
Simple sensitivity adjustment in 8 stages
Bar graph display provides information about the luminescence intensity
Sensing distances selectable through interchangeable lenses
Additional optical filters suppress background luminescence
Fiber-optic cable connection (with 20 mm lens)
Switching and analog output

Your Benefit

An 8-step rotary switch easily adjusts to accurately determine the switching output position for different materials
Bar graph display provides continual process control through easy visualization of the luminescence intensity
Filters ensure that background luminescence is reliably suppressed, ensuring greater process reliability
Interchangeable lenses for different sensing distances provide flexibility

The strength of the LUT8 is its straightforward operating concept. The sensitivity of the LUT8, and the switching reliability, can easily be adapted to the mark to be detected with the help of the 8-position rotary switch. An additional advantage is the bar graph display which visualizes the luminescence intensity of the mark and that of the background.

Applications

Quality checking the windshield

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - LUT8U-11201
