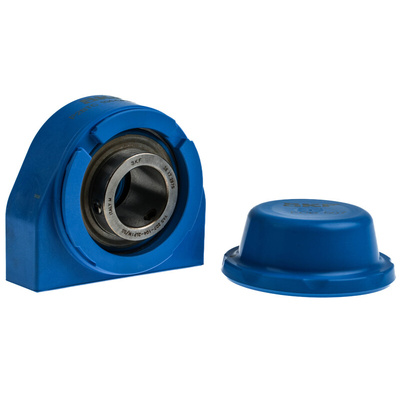

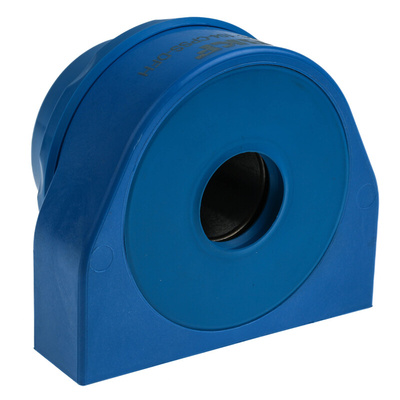

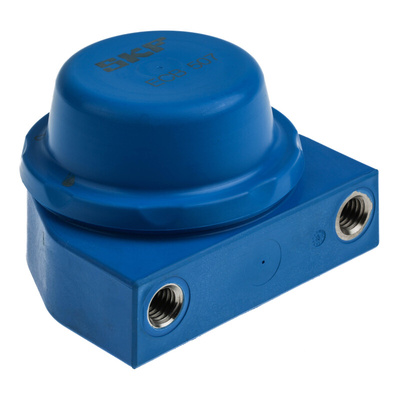

SKF P2BTC 104-CPSS-DFH Pillow Block Bearing -, 31.75mm ID

SKF Short base pillow block ball bearing unit, 31.75mm ID, 110mm length - P2BTC 104-CPSS-DFH

Short base pillow blocks contain an insert bearing made from stainless steel and a reinforced polypropylene housing. This bearing unit has a limiting speed of 700 r/min, an inside diameter of 31.75mm and is 110mm in length. SKF Food Line Range bearings have been specifically designed to be used in food and beverage applications and are suitable for use in wet conditions. Pillow block bearings are used as a pedestal to support a rotating shaft with compatible bearings.

Features and Benefits

• Chemically resistant to detergents and contaminants to ensure long-lasting use and bearing protection.
• Lightweight and strong design for effective and efficient use in harsh food and beverage applications.
• Re-lubrication free solution to ensure effective long-lasting use in applications that do not require frequent lubrication.
• Designed with hygienic features and food safe materials such as reinforced polypropylene which is suitable for use in wet conditions.
• Gutter seals and a back seal provide high sealing properties to protect the insert bearing from contamination and bacteria.

Typical Applications

Short base pillow block bearings are used in various industries such as agriculture, construction, and food. This specific bearing unit is part of SKF’s Food Line Range, therefore, is specifically designed for food and beverage applications.

Where is the best place to mount a Short base pillow block ball bearing unit?

They are typically mounted in clean environments and are not designed to bear higher loads. The main application of pillow base bearing units is to mount bearings safely with a stationary outer ring and a rotating inner ring.

Why choose the SKF Food Line range?

The SKF Food Line Range of ball bearings and bearing units provide high-performance products that are hygienic and durable. SKF’s Food Line Range is perfect for demanding food and beverage environments and allow you to get the best performance out of your manufacturing equipment such as industrial mixers. SKF’s Food Line Range of bearings and bearing units prevent bacteria growth and corrosion through thorough and frequent washdowns.

Food Line Range bearing units are made from reinforced polypropylene housings which ensures hygiene and safety in wet conditions. This dedicated food range was developed to address the need for hygienic bearings, they do not collect and grow bacteria and can be used safely and efficiently. SKF’s Food Line range addresses environmental concerns regarding contaminants and lubricants as this range of products offer the potential for a relubrication-free solution.

Datasheet - P2BTC 104-CPSS-DFH
