SKF PFT 47 Ball Bearing Insert -, 47mm ID

SKF Ball Bearing Insert, 47mm ID, 16mm Width, 67mm Length, 8.7mm Attachment Bolt Hole Diameter - PFT 47

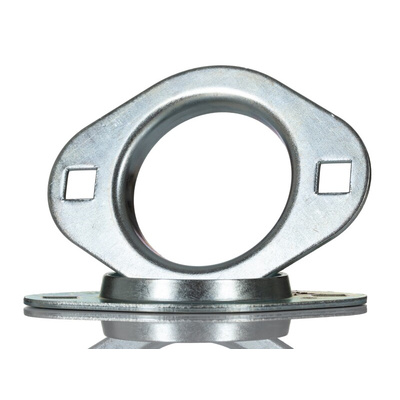

In need of a lightweight housing to hold your fast-paced bearings when space is restricted? Choose this flanged ball bearing insert body from SKF. It's 2mm thick and tips the scales at just 100g, so doesn't add bulk or strain to your setup. You can trust it to handle radial loads up to 3.3kN. The unit's two-part design makes it a versatile option for use with your choice of insert.

Features & Benefits

• Pressed steel body is more durable than traditional steel, ensuring a long service life
• Zinc coating minimises corrosion to reduce wear and minimise the need for maintenance
• Oval shape to achieve a secure attachment

Applications

• Agriculture sector
• Construction sites
• Manufacturing industry
• Food and beverage processing

How large should the attachment bolts be?

Use an 8mm (D) attachment bolt on either end of the flange to securely attach this component to your setup.

What's the benefit of a flanged pressed bearing?

Flange bearings provide two attachment points on either side to prevent the bearing from shifting out of place. These edges can also secure the bearing between two different surfaces, making it a versatile option.
