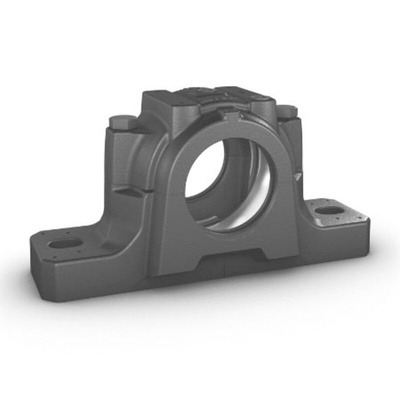

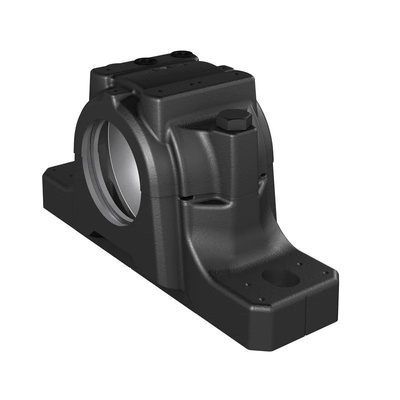

SKF SNL 513-611 K7 Plummer Block House -, 60mm ID

SKF Plummer Block House, 80mm Centre Height, 60mm ID - SNL 513-611 K7

This plummer block house from SKF is a straightforward way to mount ball bearings in high-powered industrial machinery. Designed to form part of a modular unit, it's fully customisable with other components from the SNL range. Simply select the bearing you need, add adaptor sleeves, seals and other accessories, and you can create a tailored plummer block matched to your equipment's specifications. As it's made from cast iron, this unit is strong and structurally stable, so it's ideal for supporting heavy loads. Thanks to its two-piece configuration, installation is quick and easy, even on preassembled shafts.

Features & Benefits

• Tapped holes in the cap make relubrication simple for improved bearing performance
• Caps and bases are individually marked to prevent mismatch during installation
• Improved heat conduction for up to 10% cooler running

Applications

• Mining conveyors
• Industrial fans
• Vehicle transmissions

What types of bearings can I use with this plummer block house?

For maximum flexibility, this product is compatible with any SKF spherical roller bearing (22213). Use it with an adapter or withdrawal sleeve, or mount it directly on a cylindrical shaft seat.
