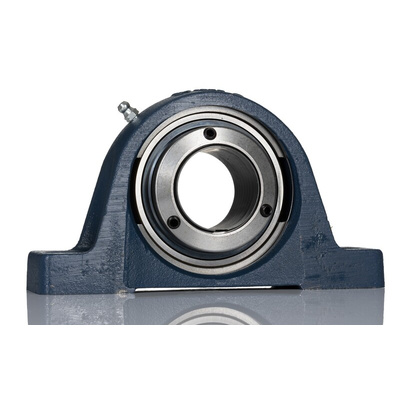

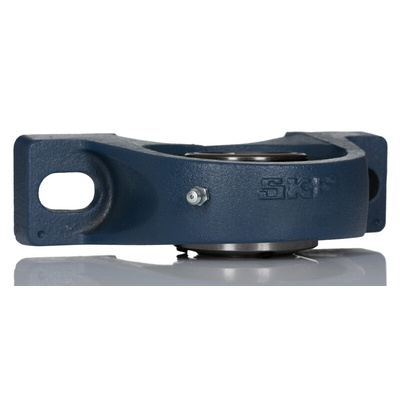

SKF SY 25 FM Pillow Block Bearing -, 25mm ID

SKF Pillow Block Bearing, 36.5mm Centre Height, 25mm ID - SY 25 FM

This pillow block bearing from SKF helps extend your machinery's service life by reducing operational friction and vibration. The narrow inner ring features an eccentric locking collar, making it easy to mount on the shaft. Deep grooves in the bearing raceway keep the balls stable, meaning this unit can easily handle high dynamic loads of up to 14kN and static loads of up to 7.8kN. A durable cast iron housing offers structural stability and strength under compression for use in demanding industrial settings. For improved operational performance, this unit can accommodate initial static misalignment.

Features & Benefits

• Maximum speed of 7000r/min for use in high-speed applications
• Lubrication hole makes regreasing easy
• Rolling parts are secured in a cage to reduce noise and minimise wear
• Supplied ready to mount, so installation is simple

Applications

• Packaging equipment
• Conveyor belts
• Agricultural machinery

What's the difference between a pillow block and a plummer block?

Both pillow block bearings and plummer block bearings are housed units designed to support shafts and couplings. Where they differ is in their application. Because plummer blocks are used to transfer high power, they're ideal for supporting heavy industrial loads. Pillow blocks, on the other hand, are better suited to lighter usage.

Datasheet - SY 25 FM

Catalogue - Y-Bearings

Datasheet - SY 25 FM
