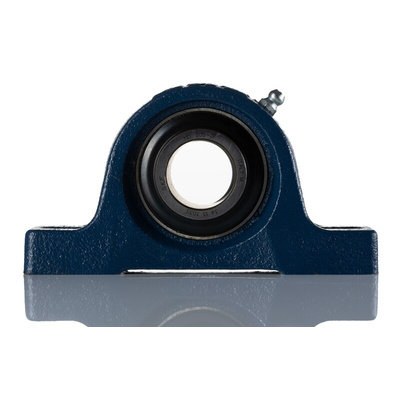

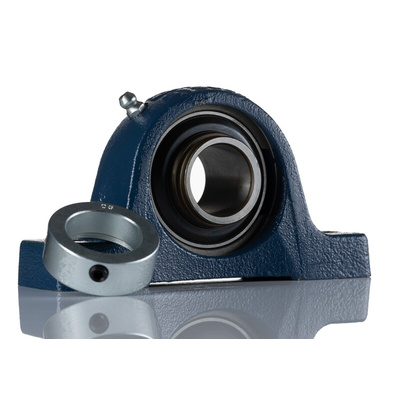

SKF SY 25 WF Pillow Block Bearing -, 25mm ID

SKF Pillow Block Bearing, 25mm ID, 36.5mm Centre Height - SY 25 WF

Looking for a reliable way to mount your industrial shaft? This pillow block bearing from SKF has the job in hand. There are two predrilled bolt holes you can use to mount it on a flat surface. All you need is fasteners with a 10mm diameter. To complete the setup, just slip a 25mm-wide shaft through the unit's inner ring. This part is made from durable cast iron, so it takes the pressure of tough environments in its stride.

Features & Benefits

• Cast-iron housing is impact-resistant, so it takes the knocks you'd expect in an industrial setting
• Can be relubricated to limit friction, minimise wear and ensure a long service life
• Sealed bearing type offers protection against contaminants

Applications

• Construction plants
• Conveyor belts
• Agricultural equipment

What's the load rating of this unit?

This unit can withstand 7.8kN when stationary and 14kN when moving, so it's suitable for heavy-duty applications.

Can I use this unit in humid work areas?

Yes, you can. This pillow block bearing is made from cast iron, which is corrosion-resistant for use in areas with high levels of water vapour.

Datasheet - SY 25 WF

Catalogue - Y-Bearings & Y-Bearing Units
