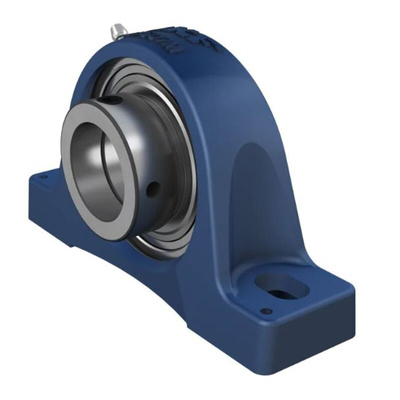

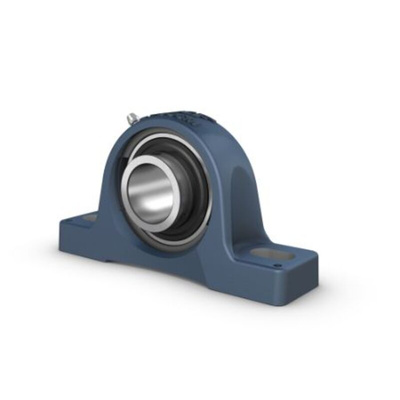

SKF SY 30 FM Pillow Block Bearing -, 30mm ID

SKF Pillow Block Bearing, 30mm Shaft Diameter, 42.9mm Centre Height - SY 30 FM

Keep your bearings running true with this pillow block unit from SKF. It's a quick and reliable way to mount rolling parts around a shaft designed to rotate in one direction. The set conveniently includes a complete assembly in the shape of a robust housing plus SKF's YET 206 deep-groove bearing. It features an eccentric locking collar to save time and effort when you're mounting it onto a shaft. As it's designed to accommodate some initial misalignment, this pillow block housing will cushion your equipment against damage caused by installation errors.

Features & Benefits

• Limiting speed of 6300rpm means it can handle rapid rotations
• High dynamic load rating of 19.5kN and static load rating of 11.2kN for use in demanding applications
• Super-strong cast iron housing for resistance to impact and wear

Applications

• Packaging equipment
• Agricultural machinery
• Construction plants

What's the difference between a pillow block and a plummer block?

Pillow blocks and plummer blocks are similar products with comparable uses, but the key difference between the two is in their scope of application. Plummer blocks are designed to handle high power transfers and very heavy loads. Pillow blocks aren't exactly featherweights, but they're better suited to lighter use.

Datasheet - SY 30 FM
