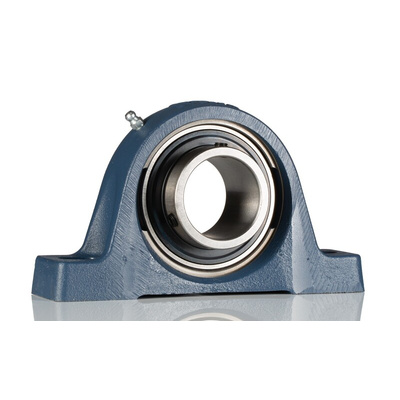

SKF SY 45 TF Pillow Block Bearing -, 45mm ID

SKF Pillow Block Bearing, 45mm ID, 85mm OD - SY 45 TF

Need a bearing unit that can handle both constant and alternating directions of rotation? Try this pillow block bearing from SKF. Thanks to its high-strength cast iron housing, it's ideal for the most demanding industrial applications. A deep-groove insert bearing provides a high degree of ball stability, meaning the unit can accommodate heavy static loads of up to 21.6kN and dynamic loads of up to 33.2kN. To ensure the bearing runs at peak performance, contact seals keep out dirt and other contaminants, while a flinger on both sides prevents oil leakage.

Features & Benefits

• Maximum speed of 4300r/min for moderate-speed applications
• Relubrication hole makes regreasing quick and easy
• Accommodates initial static misalignment to help avoid equipment failure

Applications

• Materials handling
• Packaging equipment

How is this pillow block bearing mounted?

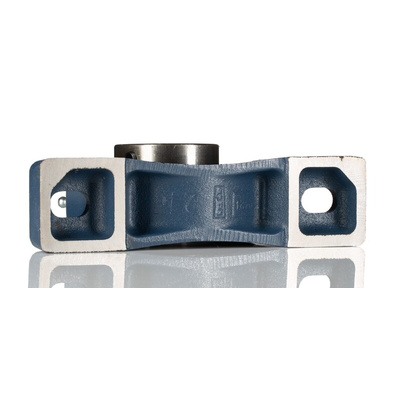

This unit is designed to be bolted directly onto a support surface through the fastening holes on either side of the housing. The inner ring is extended on both sides to ensure a secure fit on the shaft, and you can tighten it in place with two sets of locking screws.

Datasheet - SY 45 TF

Catalogue - Y-Bearings

Datasheet - SY 45 TF
