SKF SY 50 FM Pillow Block Bearing -, 50mm ID

SKF Pillow Block Bearing, 50mm ID, 203mm Length - SY 50 FM

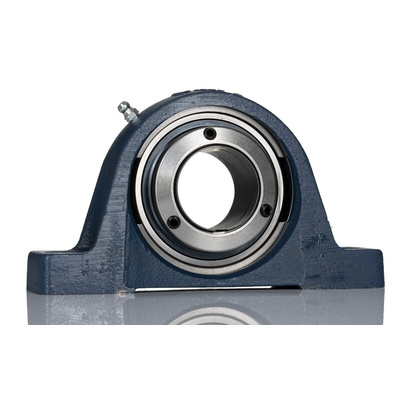

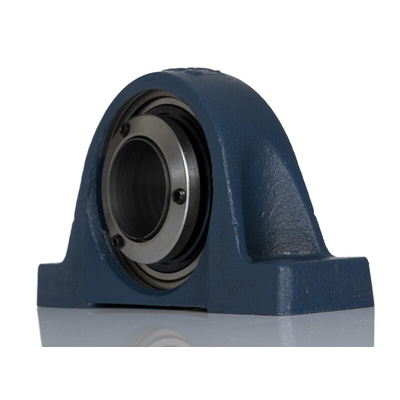

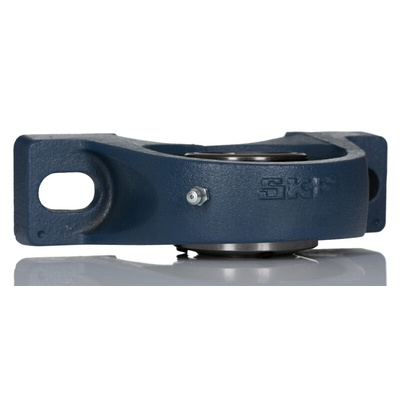

To reduce friction in your rotating machinery, opt for this SKF pillow block bearing. It consists of a bearing inside a mounting bracket and supports reliably smooth performance in single-direction machinery. The cast iron housing is resistant to mechanical wear and corrosion, so you can rely on it in demanding conditions. As the unit supports a static load of 23.2kN and a dynamic load of 35.1kN at up to 4000rpm, it's an ideal choice for heavy-duty applications. Mounting it onto a shaft is straightforward, thanks to an eccentric locking collar.

• Sealed on both sides to protect against contamination and stop lubrication leaks
• Cylindrical bore has a high carrying capacity to suit industrial applications
• Bearing steel is highly resistant to wear and suits high-powered systems
• 50mm inside diameter handles heavy loads

Applications

• Packaging equipment
• Agricultural machinery
• Manufacturing plants
• Conveyor units

Are pillow block bearings the same as plummer blocks?

Pillow block bearings and plummer blocks are often used interchangeably, but they are slightly different. Pillow blocks are designed for lighter applications, while plummer blocks suit heavier industrial systems.

What's the recommended diameter for attachment bolts?

You should use 16mm attachment bolts to secure this component to a flat surface.
