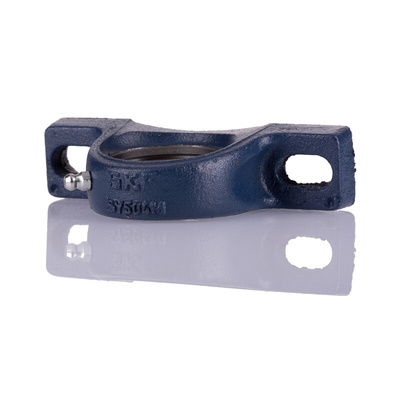

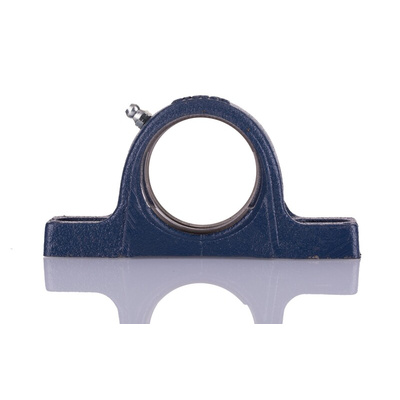

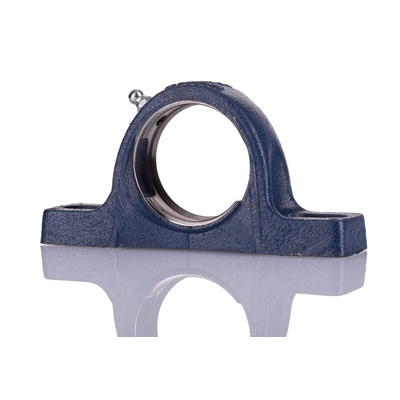

SKF SY 504 M Plummer Block House -, 47mm ID

SKF Plummer Block House, Y Bearing Type, 47mm ID, 127mm Length - SY 504 M

Use this plummer block house from SKF in your rotating machinery to handle heavy loads moving in different directions. Once mounted with a compatible bearing insert (233-7245), the unit can accommodate a static load of 6.55kN and a dynamic load of 12.7kN at speeds up to 8,500rpm for use in heavy-duty applications. Its cast-iron body is resistant to corrosion, so it won't degrade in damp conditions. For a secure fit, you can install the housing directly onto the support surfaces in your system with two 10mm bolts and two 2mm dowel pins.

• Relubrication hole for ease of maintenance
• Slim dimensions of 127 (L) x 32 (W) x 33.3mm (H) to save space in compact setups
• Light weight of 0.41kg to place minimal strain on your equipment

Applications

• Manufacturing facilities
• Agricultural equipment
• Packaging machinery

What thread size does the grease fitting have?

This unit's grease fitting has a 1/4-28 SAE-LT thread, making it compatible with standard relubrication equipment.

Should I use an end cover with this housing?

Yes, you can use an end cover (339-8849) with this product to keep the shaft in place and prevent contact between rotating ends.
