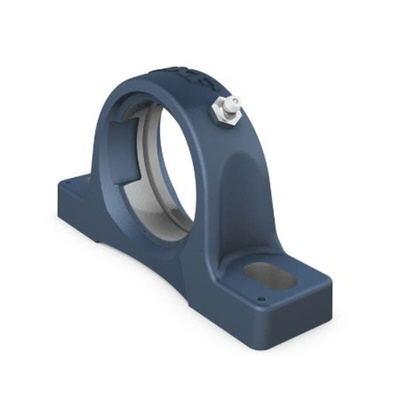

SKF SY 507 M Plummer Block House -, 72mm ID

SKF Plummer Block House, 45mm Overall Width, Cast Iron Material - SY 507 M

Want to achieve efficient movement of rotating parts in your industrial machinery? Turn to this plummer block house from SKF. It has two pre-drilled bolt holes in its base, so you can attach it to a flat surface in the blink of an eye. To complete your assembly, simply mount an insert bearing and slide a shaft into the inner ring, and you'll be up and running in no time. For additional protection against contaminants, use an end cover (339-8877) to keep the bearing's workings safe and sound.

Features & Benefits

• Cast-iron body is resistant to corrosion and wear, so safe for use in tough environments
• Compact overall dimensions of 160 (L) x 45 (W) x 93mm (H) for installation in tight spaces
• Threaded relubrication hole makes maintenance a breeze
• Light weight of 1.05kg puts minimal strain on your equipment

Applications

• Power transmission systems
• Construction sites
• Agricultural equipment

What bolts should I use to install this plummer block house?

To mount this plummer block house, use two screws with a 12mm diameter to ensure a secure fit.

Datasheet - SY 507 M
