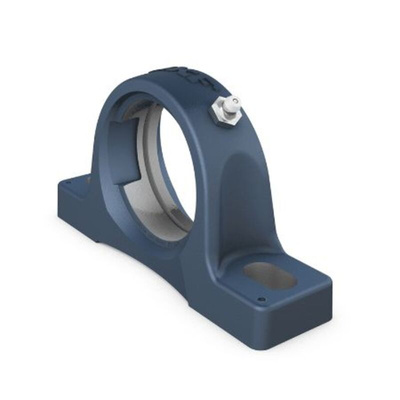

SKF SY 510 M Pillow Block -, 90mm ID

SKF Pillow Block Housing, Y Bearing, 90mm ID, 203mm Length - SY 510 M

Looking for a sturdy, smooth-running support for your 90mm bearing? This pillow block housing from SKF accommodates insert bearings that run in different directions to suit your needs. Thanks to the cast iron construction material that's resistant to mechanical wear and corrosion, this unit is a reliable option for use with heavy-duty applications in damp conditions. Two plain hole fasteners make it easy to install it by bolting it directly onto a flat surface. A weight of 1.9kg means the housing offers stability without putting excess strain on your setup.

• Relubrication nipple and hole makes it easy to grease the installed bearing without needing to dismantle it
• Plain standard bolt hole fasteners make installation easy
• 45° position suits angular contact bearings and their loads

Applications

• Packaging systems
• Agricultural machinery
• Manufacturing facilities

What size attachment bolts does this pillow block need?

You should use 16mm diameter attachment bolts to secure this unit to a stable surface.

What size is this pillow block housing?

The compact block has a centre height of 57.2mm and a length of 219mm.
