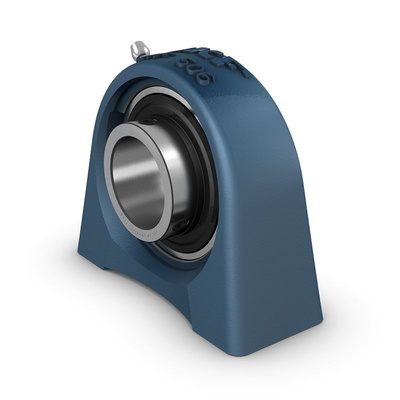

SKF SYF 30 TF Pillow Block Bearing -, 30mm ID

SKF Pillow Block Bearing, Deep-Groove Insert Bearing Type, Cast Iron Housing, 30mm ID, 98mm Length - SYF 30 TF

To keep your rotating machine shaft firmly secured, use this pillow block bearing from SKF. It's made up of an insert bearing set in a housing that can be bolted to a surface. This rigid structure allows the inner ring to move while keeping the outer ring stable. As this insert is based on a sealed deep-groove ball bearing, you'll find it handy for a shaft that rotates constantly and changes positions. The inner ring extends on both sides to accommodate a shaft inserted from either direction.

Features & Benefits

• Two pre-drilled bolt holes make it easy to fix to a flat surface
• Durable cast iron housing resists mechanical wear
• Limiting speed of 6,300r/min to withstand fast-paced rotation
• Bolt holes for fasteners are threaded for secure fixing

Applications

• Bottling plants
• Agricultural equipment
• Printing presses
• Marine engineering

What type of sealing does this bearing have?

It has contact sealing and flingers on both ends that help keep its moving parts shielded from dirt.

How do I tighten the shaft to this bearing?

Simply fasten it to the inner ring using set screws.

Datasheet - SYF 30 TF

Catalogue - Y-Bearings & Y-Bearing Units
