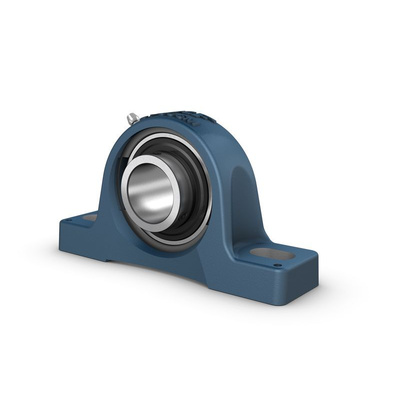

SKF SYJ 35 TF Pillow Block Bearing -, 35mm ID

SKF Pillow Block Bearing, 35mm ID, 46mm Overall Width, 5300r/min Limiting Speed - SYJ 35 TF

Are you on the hunt for a support element that also handles rotational movements? Choose this pillow block bearing from SKF. It's a strong choice as it's got the muscle to support static loads up to 15.3kN. To install the assembly, be guided by the two 129mm-distanced pre-drilled holes in its extended inner ring and bolt it down to your desired surface. Once you're happy with the setup, use a screwdriver to tighten the inner ring via the set screw located on top.

Features & Benefits

• Light 1.45kg weight relieves your mounting surface of excess weight
• Cast-iron housing withstands mechanical stress and impacts for a long service life
• Relubrication hole for easy accessibility during maintenance
• Dynamic load rating of 25.5kN for compatibility with heavy axial weights
• Limiting speed of 5300r/min is ideal for high-velocity applications

Applications

• Paper and pulp mills
• Agricultural equipment
• Automotive manufacturing
• Construction plants

Is this pillow block bearing sealed?

Yes. It's sealed and has a flinger on both sides of the unit, so it keeps contaminants at arm's length.

Datasheet - SYJ 35 TF

Catalogue - Y-Bearings and Y-Bearing Units
