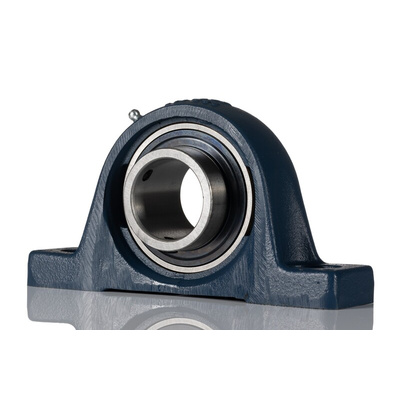

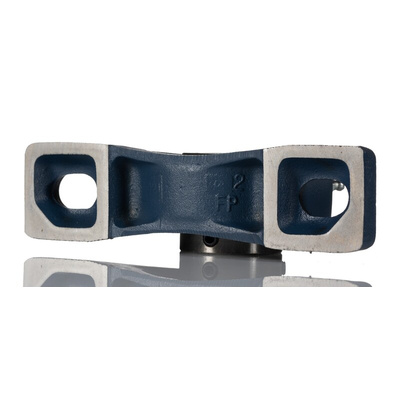

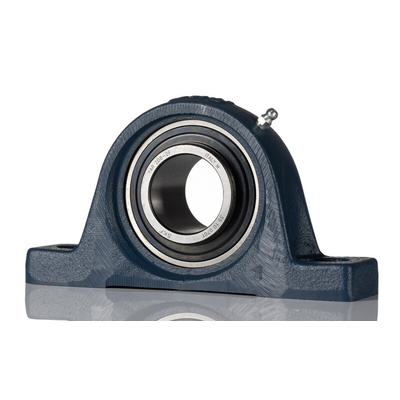

SKF SYJ 40 TF Pillow Block Bearing -, 40mm ID

SKF Pillow Block Bearing, 40mm Shaft Diameter, 184mm Overall Length - SYJ 40 TF

Get your industrial parts moving with this pillow block bearing from SKF. Installation is lightning-fast thanks to the pre-drilled mounting holes, which let you fix it in place using two 14mm screws and nothing more than a simple screwdriver. The extended design of the inner ring makes it a breeze to slide your rotating shaft into place. This versatile piece of kit works in setups where the direction of movement is either constant or alternating, so you can put it to the test with different types of rotating equipment.

Features & Benefits

• Limiting speed of 4800rpm for use in high-speed applications
• Cast iron housing is resistant to corrosion and wear
• Bearing is lubricated and sealed to eliminate the need for maintenance
• Set screw lets you lock the housing onto the shaft for secure installation

Applications

• Heat treatment equipment
• Conveyor systems
• Packaging equipment
• Material handling

What's the load rating of this pillow block bearing?

This pillow block bearing can withstand static loads of up to 19kN and dynamic loads of 30.7kN. This means it will easily bear up in heavy-duty applications.

Datasheet - SYJ 40 TF
