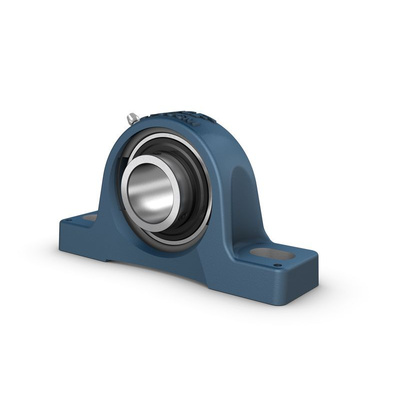

SKF SYJ 60 TF Pillow Block Bearing -, 60mm ID

SKF Pillow Block Bearing, 60mm Shaft Diameter, 3400rpm Limiting Speed - SYJ 60 TF

Mount your rotating shaft in a flash with this pillow block bearing from SKF. As it comes with predrilled holes in its base, it's easy to install on a support surface with nothing more complex than a pair of 16mm screws and a compatible driver. To get up and running, simply slide a shaft through the unit's inner ring and secure it in place with the built-in set screw. The insert bearing is pre-lubricated and sealed, so you'll find it's a smooth operator that doesn't need any maintenance.

Features & Benefits

• Static load rating of 36kN and dynamic load rating of 52.7kN mean it can handle heavy-duty loads
• Cast-iron housing is resistant to wear, impact and corrosion for use in harsh environments
• Limiting speed of 3400rpm for use in high-speed applications
• Seal and flinger to keep contaminants out and support a longer service life

Applications

• Power transmission equipment
• Agricultural sector
• Heat-treatment facilities

What shaft size is this unit designed for?

This bearing accepts shafts with a diameter of 60mm, so it's a good choice for use with compact equipment.

Datasheet - SYJ 60 TF
