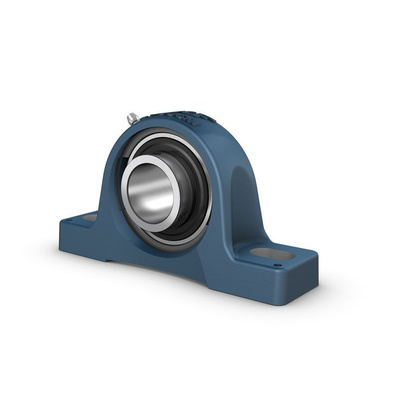

SKF SYJ 90 TF Pillow Block Bearing -, 90mm ID

SKF Pillow Block Bearing, Cylindrical Bore Type, 89mm Total Width, 101.6mm Centre Height, 90mm ID - SYJ 90 TF

Keep your machinery turning smoothly with this pillow bock bearing from SKF. You can secure it onto a flat surface using two 22mm-wide fasteners, so setting up is quick and convenient. The bearing's inner ring fits snugly to a shaft with a width of 90mm so you can mount it without the need for extra adapters. There's a contact seal that keeps lubricant in place, reducing maintenance time. As the unit's solid cast-iron housing is impact-resistant, it keeps on spinning, even in heavy-duty environments.

Features & Benefits

• Cast-iron housing is corrosion-resistant so it's ideal for use in humid work areas
• Contact seal keeps contamination out of the workings, for a long service life
• Limiting speed of 2,000r/min for use with fast-paced applications
• Bearing steel is highly resistant to wear for reliable long-term use

Applications

• Agricultural machinery
• Packaging industry
• Conveyor systems
• Heat treatment equipment
• Construction plants

What's the load rating of this unit?

This pillow block bearing can withstand loads up to 95.6kN when moving and 72kN when stationary, so it's a tough nut.

Datasheet - SYJ 90 TF

Catalogue - Y-Bearings & Y-Bearing Units
