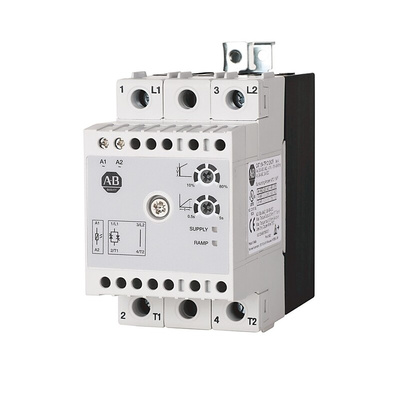

154-TP2C12NCR, Rockwell Automation Soft Start, Soft Start, 6.3 kW, 600 V ac, 3 Phase, IP20

Rockwell Automation Soft Starter, 2 Pole, IP20 Rating - 154-TP2C12NCR

Protect your industrial equipment against sudden power surges with this soft start torque controller from Rockwell Automation. It intercepts high-voltage inputs and gradually feeds them through to ensure that your device switches on every time. The three-phase controllers have a unique-sequence-detection protective feature that turns the output off in the event of an incorrect motor phase. Thanks to an abrasion-resistant semi-crystalline plastic housing, so you can be sure of a long service life. This unit is suitable for demanding processes that need a smooth start, from compressors, elevators and grinders to paint shakers and car washes.

• DIN rail or panel-mount style for quick and simple installation
• IP20 rating indicates the unit is safe to touch
• Over-temperature alarm signal warns you of rising heat
• Relative humidity of

Standards and Certifications

• IEC 61373
• EN
• CE

The Rockwell Automation bulletin 154 starting torque controller (STC) is fully solid state, it does not come equipped with a bypass, and one is not required. The controller is designed to run on full load motor current. It is designed to reduce system shock that is typically seen when directly starting on line voltage. The STC is rated for 600V AC three-phase motor up to 12 A

Can this unit be used in residential settings?

Fully solid-state
Operating Temperature -40°C to 60 °C

This product can produce radio interference, so you may need to use further control measures if it's used in domestic settings.

Datasheet - 154-TP2C12NCR

Catalogue - Essential Components
