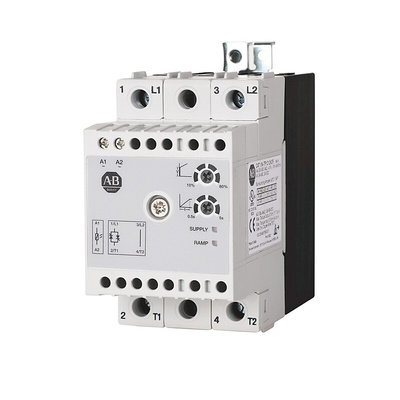

154-TP2C25NCD, Rockwell Automation Soft Start, Soft Start, 15 kW, 600 V ac, 3 Phase, IP20

Rockwell Automation Soft Starter, 25A Current Rating, 15kW Power Rating - 154-TP2C25NCD

To protect your industrial equipment against electric surges, use this soft starter from Rockwell Automation. It reduces the power at startup and gradually accelerates it to full speed, so your machinery is safeguarded and has a longer working life. The device has a red LED indicator that flashes an alert when the temperature is too high, ensuring that your setup doesn't overheat. A 2-pole configuration means it can control 2 circuits at the same time, so it's an ideal choice for systems where space is limited. As it has a rating of 600V AC, this unit is best suited for use with high-voltage applications.

• Power rating of 15kW, for use in high-voltage applications
• Shock resistance of up to 11g, giving protection against impacts
• Operating altitude of up to 2000m makes it ideal for use in elevated settings

Standards and Certifications

• cULus
• IEC 61373
• IEC 50155

The Rockwell Automation bulletin 154 starting torque controller (STC) is fully solid state, it does not come equipped with a bypass, and one is not required. The controller is designed to run on full load motor current. It is designed to reduce system shock that is typically seen when directly starting on line voltage. The STC is rated for 600V AC three-phase motor up to 25 A

Is this device safe to touch?

Fully solid-state
Operating Temperature -40°C to 60 °C

Yes, this device has an IP20 rating, indicating it's safe to touch and resistant to dust or objects over the size of 12mm.

Datasheet - 154-TP2C25NCD

Catalogue - Essential Components
