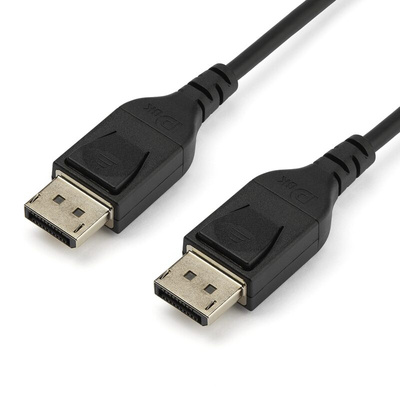

DP14MM1M, StarTech.com Male DisplayPort to Male DisplayPort, PVC Cable, 8K @ 60 Hz, 1m

StarTech.com 8k DisplayPort to DisplayPort, 3ft – DP14MM1M

Super ultra high definition, otherwise known as 8k, is the future of video. This DP cable is at the forefront of technology and is plug-in-and-play ready by DP 1.4 standards. StarTech.com offer this essential cable because they know users want the best picture possible, and with supported resolution up to 7680x4320 @ 60Hz, users should have no problem viewing the next generation of stunning video.

Futureproof Cabling

8k is used in digital signage as well as other commercial ventures which require the best resolution available. This is where StarTech.com’s cable comes into play, not only does it fully support 4320p monitor, but is also backwards compatible with 4k and 5k displays.

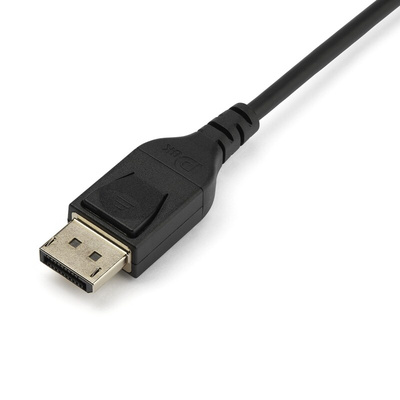

Secure Latched Connection

To maintain the high-quality connection, StarTech.com have incorporated a latch system where to remove the cable, users need to press the clip in to release it. This vastly improves accidental cable removal and reliability from a clean installation into a monitor.

The wire is also 34 AWG which is a slim professional grade size wire, allowing for a more flexible installation.

Ultimate Performance

DisplayPort 1.4 provides a massive range of benefits to this generation of cable. Bandwidths of 32.4Gbps and HBR3 (High Bit Rate 3) mean that the cable can deliver the maximum amount of data in Gbps, making it possible to connect a variety of different displays on each cable, as well as daisy chaining through multi-stream transport.

For richer colour and contrast, this cable supports HDR (High Dynamic Range) and to maximise resolution output the cable features DSC (Display Stream Compression). Both these attributes allow the best picture quality to be displayed.

StarTech’s cable also has forward error correction in this 1.4 version, which allows the display to only take the data that is correct and ignore any redundant transmission. On top of that is added security for a safer data transfer connection via HDCP 2.2 (High-Bandwidth Content Protection) and is the latest version of copy protection with more advanced encryption.

The cable also allows for 32 channels of uncompressed, or lossless, digital audio channels for closer to real sound audio.

Features and Benefits

• Supports 8k compatible monitors (4320p/7680x4320 @ 60Hz)
• Max bandwidth 32.4Gbps
• Supports High Bit Rate 3
• Supports HDR
• Features Display Stream Compression
• 3ft in length
• Backwards compatible with 4k and 5k
• DisplayPort 1.4 version
• 34 AWG
• Clip in connectors
• Supports daisy chaining
• Supports multi-stream transport
• Supports forward error correction
• High-bandwidth content protection 2.2
• Allows 32 uncompressed digital audio channels
• EMI shielding
• PVC jacket
• Gold plated male connectors

FAQ

What are the applications for this DP cable?

Users can use the DisplayPort cable to give presentations, displaying photography and videography. For gamers, visuals and audio are more lifelike. Used with signage displays means users can rely on crisp and clear images to be displayed.

How many pixels does 8k have?

8k supports 7680x4320 pixels.

Are DisplayPort cables backwards compatible?

Yes, they are. This StarTech.com cable is backwards compatible with 4k and 5k displays.

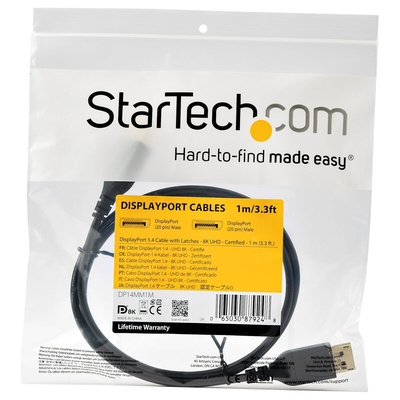

What’s in the box?

• 1x 3ft DisplayPort Cable

Datasheet- DP14MM1M
