PEX2S953, StarTech.com 2 Port PCIe RS232 Serial Card

StarTech.com 2-Port PCIe RS232 Serial Board, 921.6Kbps Baud Rate, 256B FIFO - PEX2S953

Add two RS232 (recommended standard) ports to your computer through your PCIe (peripheral component interconnect express) slot with this robust adapter from StarTech.com. The unit provides a direct connection for DB9 cables, so you can interact with serial devices such as card readers, printers and modems. It has an ample cable length of 1.8 metres, which makes it convenient to use in both industrial and commercial settings.

Maximum compatibility This component offers support for both Windows and Linux operating systems so it's easy to integrate into your setup.
Driverless installationDoesn't need any drivers or external software to work on your computer. Simply connect it to your PCIe slot and it's ready for use.
Fast, orderly data transmissionWith a baud rate of 921kbps, this adapter allows for quick serial communication between devices. A 256B FIFO (first-in-first-out) buffer varies read/write timing to improve link efficiency.

• Broad operating temperature range of -10°C to +80°C for use in demanding industrial conditions• MTBF (mean time between failures) of 222,366 hours for reliable long-term performance

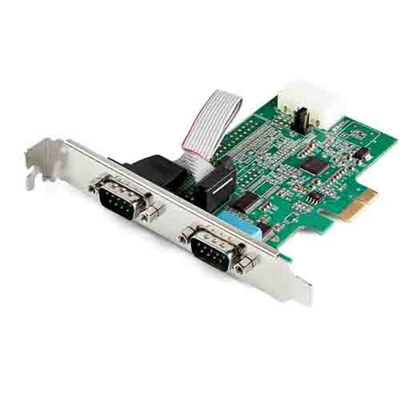

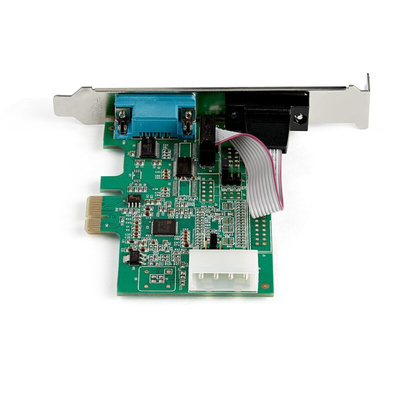

The Startech 2-port PCI Express RS232 serial adapter card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. The dual port PCIe serial card enables you to interact with serial devices, such as card readers, print

FAQs

The card provides choice of 12v, 5v, or none through pin 9 with up to 2A total

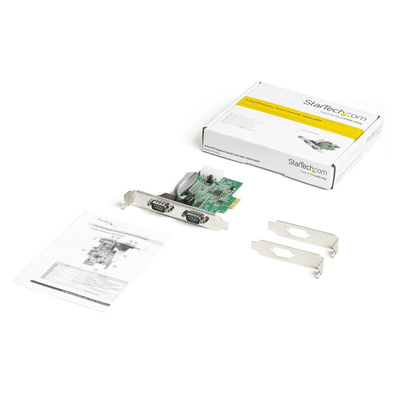

PCIe multiport serial card comes with a standard bracket pre-installed & 2x low profile brackets incl for versatile install
Versatile applications

How much does this adapter weigh?This component weighs just 56g, so it's easy to handle and won't put a strain on your computer.

Chipset Manufacturer

Asix

Chipset Model

AX99100

Cable Length

1.8 m

Datasheet- PEX2S953

Manual - PEX2S953
