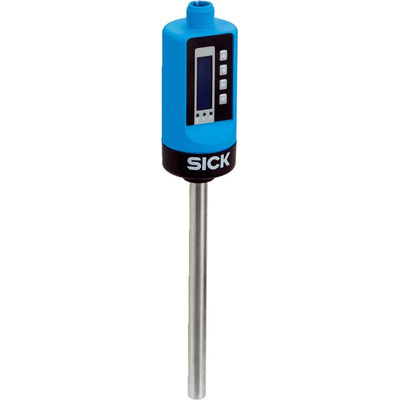

FTS-I060F14A, Sick FTS Series Flow Switch Flow Sensor for Liquid, 3 cm/s Min, 300 cm/s Max

Overview

At a glance

Flow monitoring and temperature measurement in one sensor
Optimized for water and oil
teach-in option of other liquids
IP 67/IP 69 enclosure rating and IO-Link 1.1
Industrial design in VISTAL® housing with 180°-rotatable OLED display
Stainless steel hygienic variant, completely CIP-/SIP-capable, process temperatures up to 150 °C

Your Benefit

One sensor, two measurements - reduces costs and hygiene risk thanks to a unique installation point
Cost savings thanks to speedy installation via mounting adapter
Time savings due to easy commissioning without calibration for taught-in media
User-friendly industrial version with intuitive menu guidance and display for fast commissioning
Reduced storage needs thanks to flexible adjustment to the pipe diameter
Less wiring is required thanks to IO-Link 1.1 with convenient adjustments as well as integration and cloning functions
Low downtimes thanks to low-maintenance system

The T-Easic® FTS thermal flow switch measures flow and temperature in accordance with the calorimetric principle. With two digital outputs, it monitors the measured values and sends these to a superior control as soon as a set limit value is exceeded or undercut. The parameter settings can be done via IO-Link. As an industrial design, it also offers an OLED display and operating buttons. Values preset at the factory for media such as oil and water simplify and accelerate commissioning
nearly all liquids can be calibrated quickly and easily. The extremely rugged VISTAL® housing of the industrial design protects the sensor during cleaning processes, the hygienic design also available also withstands CIP/SIP conditions.

Applications

Flow monitoring in cooling lubricant circuits and cleaning machines
Flow and temperature detection in the food industry and in CIP cleaning systems
Pump protection and monitoring
Contamination monitoring of filters
Performance measurement of rinsing and spraying processes

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - FTS-I060F14A
