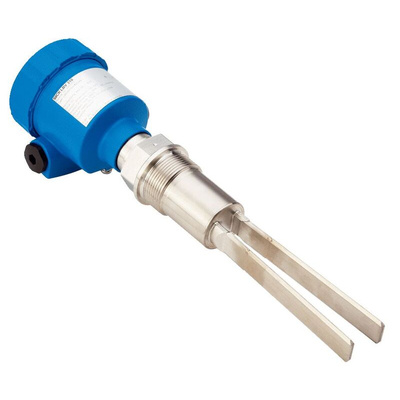

LBV310-XXAGDRAMX, Sick LBV310 Series Vibrating Level Switch Vibrating Level Switch, DPDT Relay Output, Vertical/Horizontal G1 1/2 Thread,

Overview

At a glance

Tough device design
Several housing materials and electrical outputs available
Immune to deposit formation
Commissioning without filling
Process temperature up to 250 °C
Very high repeatability
ATEX versions (1D/2D/1G/2G) available
Tube-extended version (LBV330) up to 6 m and rope extensions version (LBV320) up to 80 m available for vertical mounting

Your Benefit

Easy installation and commissioning, no calibration necessary
Easy operation and integration, saves time
Maintenance-free sensor, reduces downtime
Testing in place possible – no mounting required, which reduces installation time
Flexible and tough system for a multitude of applications
Solutions for vertically mounted switches in difficult installation conditions and surroundings
Level monitoring in dust hopper
Level monitoring in silos
Level monitoring in fuel tank

The rugged, reliable, and highly accurate vibrating level switches in the LBV300 product family signal full, empty, or demand states in bulk materials. The tuning fork reacts to changes in density, and thus operates independently of silo shape or the tank material used. The rugged stainless steel tuning fork is piezo-electrically energized and vibrates at its resonance frequency when it is covered by bulk materials. This change is detected and converted into a switching signal. While the LBV310 compact device is used for horizontal mounting and to signal full states, the LBV320 cable-extended switch and the LBV330 tube-extended switch are used for vertical mounting in silos and bridge sensing ranges of up to 80 m and 6 m respectively. With a wide variety of thread and flange connections, and several electronic variants, the LBV330 offers a solution for almost all applications, even in potentially explosive atmospheres.

Applications

Level measurement in the material container
Overfill protection for sawdust bunkers and silos
Level measurement in the material container
Overfill protection for aggregates and raw meal silos
Level monitoring in the coal hopper
Level monitoring in the dust hopper
Level monitoring in the cement silo
Overfill protection for coal bunkers/silos
Overfill protection for the lime silo
Ash hopper level monitoring in coal-fired power plants
Overfill protection for biomass bunkers and silos
Sorbent material storage silo
Overflow protection for biomass bunkers and silos (organic waste incineration)
Overflow protection when stocking reagents for flue gas purification
Ash hopper level monitoring
Level measurement during material handling
Silo levels at a blast furnace
Clogging in a compartment hopper
Dust silo filling level at a dust conveying system in the off-gas system
Level monitoring in bauxite or aluminum stores
Level monitoring in collection containers of electrolysis cell

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - LBV310-XXAGDRAMX
