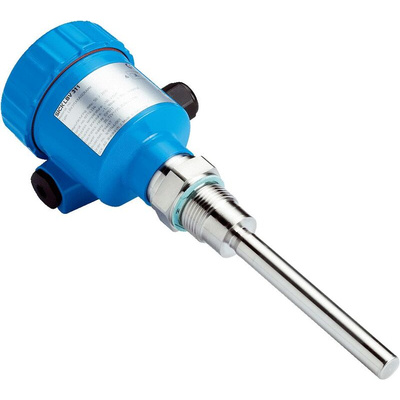

LBV311-XXAGCTKMX, Sick LBV311 Series Vibrating Level Switch Vibrating Level Switch, G1 Thread, Vertical/Horizontal, Plastic, Stainless

Overview

At a glance

Compact sensor from 1" thread
Monoprobe design prevents bulk materials from sticking or jamming
Polished monoprobe for food applications
Commissioning without filling and medium calibration
Process temperature up to 250 °C
ATEX certifications (1D/2D/1G/2G) available
Tube extension variant (LBV331) up to 6 m and cable extension model (LBV321) up to 80 m available for vertical mounting

Your Benefit

Easy commissioning, no upstream calibration necessary
Maintenance-free system
Sensors can be tested while installed
Flexible, reliable system suitable for many types of applications
Vertical mounting, even in difficult installation and ambient conditions

The vibrating level switches in the LBV301 product family can be relied upon to signal full, empty, or demand states in bulk materials. The monoprobe design prevents bulk materials from jamming. The rugged stainless steel sensor design is piezo-electrically energized. When the probe is covered with bulk materials, the change in vibration amplitude is reliably detected and converted into a switching signal. As the monoprobe is easy to clean, the sensors are even suitable for use in the food industry. While the LBV311 compact device is used for horizontal mounting, the LBV321 cable-extended switch and the LBV331 tube-extended switch are used for vertical mounting in silos and bridge sensing ranges of up to 80 m and 6 m respectively. With a variety of process connections for hygienic applications and several electronic variants, the LBV301 can be used for nearly all applications, even in explosive atmospheres.

Applications

Level measurement of pellets or wood chips in the wood industry
Detection of basic substances in the food industry, such as milk powder
Min./max. or demand signal in silos
Explosive dust mixtures
Level monitoring in the coal silo
Level measurement during material handling
Carbon level in tank at a blast furnace
Clogging in a compartment hopper
Dust silo filling level at a dust conveying system in the off-gas system

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
