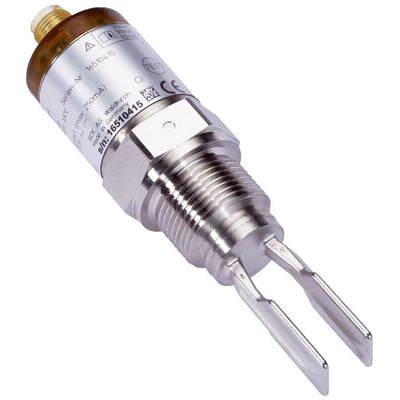

LFV200-XXHCLTPM Device Type, LFV200-XXHCLTPM | Sick LFV200 Series, Triclamp 1", Vertical/Horizontal Mounting, Vibrating Level Switch, Vibrating Level Switch, PNP

Overview
At a glance
Commissioning without container filling or medium calibrationImmune to deposit formationProcess temperature up to 150 °CTwo electrical output versions and IO-Link availablePipe extension up to 1,200 mmHygienic designs with polished surface, CIP- and SIP-capableHousing made of 316L stainless steelVery high repeatability
Your Benefit
Universal and reliable technology for nearly all liquids and applicationsCan be used in containers and pipes regardless of the mounting situationEasy installation and commissioning, no medium calibration necessaryEasy operation and system integrationMaintenance-free systemSensors can be tested while installedFrequency, amplitude and temperature of the sensor can be read out via IO-LinkExtended pipe variants for more flexibility
The vibrating level switch of the LFV200 product family detects the pre-defined levels in liquid systems with maximum precision. Whether indicating that a container has reached its maximum fill level (overfill protection) or that it is empty or used in pipes to prevent the pumps from running dry, the LFV200 works with all liquids and is wear- and maintenance-free. A high surface quality and the rugged tuning fork made of stainless steel make the LFV200, in combination with aseptic process connections, the first choice for applications even with the strictest hygiene requirements. With the LFV230, extended pipe variants up to 1,200 mm are available. With IO-Link, the oscillation frequency, amplitude and temperature of the sensor can be read out in addition to the switching signal, which enables extended diagnostics and predictive maintenance.
Applications
Point level measurement in storage tanksPoint level measurement in release agent tanksMonitoring of pouring machine supply linesPoint level measurement in CIP reservoirsMonitoring of hydraulic and coolant systemsLevel measurement in the release agent tankMonitoring of the pouring machine supply cablePoint level measurement in storage tanksPoint level monitoring at CIP storage containersPoint level measurement in storage tanksPoint level monitoring at CIP storage containersMeasuring pressure, level, and temperature for hydraulic and cooling lubricant systems
Note
Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
