TSP-1PAG10305MZ Probe Length, TSP-1PAG10305MZ | Sick RTD Sensor, 5mm Dia, 30mm Long, +130°C Max

Overview
At a glance
Platinum resistance (Pt100 or Pt1000, 2-wire or 3-wire), accuracy class B according to IEC 60751Measuring range –30 °C ... +130 °CVarious connection threads and insertion lengthsParts in contact with media made from stainless steel 1.4305Round connector M12 x 1 (IP 67)
Your Benefit
Reliable operation through rugged design and high-quality materialsGood long-term stabilityQuick and safe installationSimple system integration through very compact dimensions

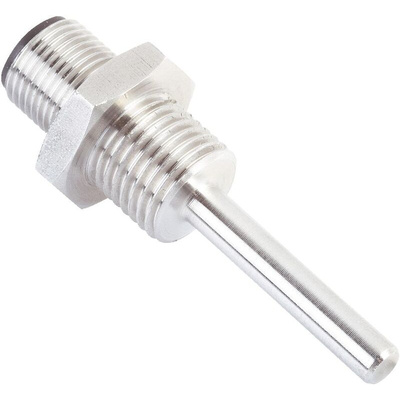

The TSP is a universal purpose platinum insertion thermometer for the temperature measurement in liquids and gases. It can be adapted to specific applications through its available connection threads and insertion lengths. Wetted parts are made from stainless steel 1.4305. The platinum resistor (Pt100 or Pt1000, accuracy class B according to IEC 60751) is located inside the tip of the probe. It is electrically connected by an M12 x 1 circular connector. Therefore, the device is compact and well suited for narrow installation spaces.
Applications
Temperature measurement of liquids and gases in industrial applicationsMonitoring of operating conditions (e. g., temperature of cooling water or hydraulic oils)Tank and tote constructionMachine and plant engineeringHeating systemsTemperature measurement in the extruderCooling lubricant temperature control
Note
Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
