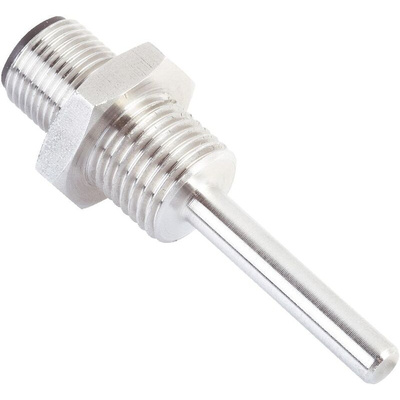

TSP-1PAG10506MZ, Sick PT100 RTD Sensor, 6mm Dia, 50mm Long, +130°C Max

Overview

At a glance

Platinum resistance (Pt100 or Pt1000, 2-wire or 3-wire), accuracy class B according to IEC 60751
Measuring range –30 °C ... +130 °C
Various connection threads and insertion lengths
Parts in contact with media made from stainless steel 1.4305
Round connector M12 x 1 (IP 67)

Your Benefit

Reliable operation through rugged design and high-quality materials
Good long-term stability
Quick and safe installation
Simple system integration through very compact dimensions

The TSP is a universal purpose platinum insertion thermometer for the temperature measurement in liquids and gases. It can be adapted to specific applications through its available connection threads and insertion lengths. Wetted parts are made from stainless steel 1.4305. The platinum resistor (Pt100 or Pt1000, accuracy class B according to IEC 60751) is located inside the tip of the probe. It is electrically connected by an M12 x 1 circular connector. Therefore, the device is compact and well suited for narrow installation spaces.

Applications

Temperature measurement of liquids and gases in industrial applications
Monitoring of operating conditions (e. g., temperature of cooling water or hydraulic oils)
Tank and tote construction
Machine and plant engineering
Heating systems
Temperature measurement in the extruder
Cooling lubricant temperature control

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - TSP-1PAG10506MZ
