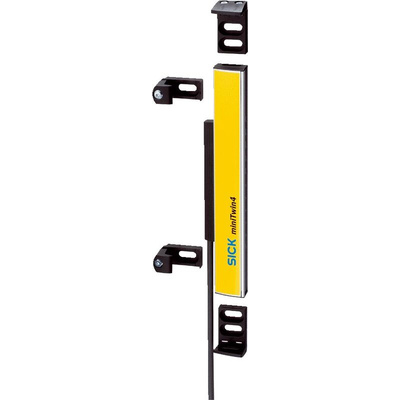

C4MT-09014ABB03FE0, Sick miniTwin4 Series Light Curtain 1 Twin-Stick, 14mm Resolution

2133736
Номер производителя: C4MT-09014ABB03FE0Производитель: Sick
Цена за шт.
569275.20 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Overview

At a glance

Your Benefit

The safety light curtain in miniature format – in hazardous point protection for finger and hand protection. Its two twin sticks, in which the sender and receiver are installed symmetrically in a compact housing for the first time, have received several awards. One of the Twin-Sticks is mounted opposite the other one and rotated by 180 degrees. This creates a safe protective field. The miniature design of the miniTwin, the option of cascading it and its different protective field heights save production space and enable small safety distances. At the same time, this mini device achieves great things: it functions perfectly, even when subjected to very strong shocks and vibrations and temperatures down to –20° Celsius.

Applications

Benefit from optimum integration into your machine thanks to the miniature design
Minimize your ordering, logistics, handling and maintenance work due to the small number of components, which are all standardized
Increase the productivity of your staff with optimal work ergonomics With the miniTwin, work can be performed unhindered at machines, accelerating production processes
Take advantage of the benefits of quick diagnostics
Save time and resources thanks to easy commissioning and configuration
Eliminate blind zones
Reduce mounting timesTwin sticks: sender and receiver in a compact housing
Different protective field heights, graduated to 60 mm each
Diagnostics through protective field visualization
Commissioning and alignment by means of color LEDs, configuration without software
Cascading possible
Application-specific brackets

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Техническая спецификация
pdfDatasheet - C4MT-09014ABB03FE0
PL EN ISO 13849-1:
PL e
Длина:
900мм
Защитная высота:
900мм
Максимальная защитная ширина:
Максимальное время отклика:
17 мс
Напряжение питания:
24 В
Особенности:
Automatic/Manual Restart, EDM
Применение:
Finger
Размеры:
15x32 mm
Разрешение луча:
14мм
Серия:
miniTwin4
Тип безопасности:
4
Тип клеммы:
5-Pin M12 Разъем
Тип компонента:
1 Twin-Stick
