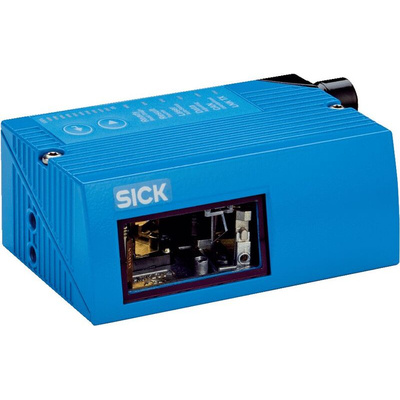

CLV630-0120 Device Type, CLV630-0120 | Sick Fixed Cable Bar code reader, 18 → 30 V dc

Overview
At a glance
Your Benefit
The CLV63x product family consists of compact, powerful fixed mount bar code scanners which were designed for a wide range of applications. The CLV63x combines a high reading performance with the improved SMART code reconstruction system: A reading algorithm that can accurately detect bar codes even if they are damaged or partially covered. Integrated function buttons and a built-in LED bar graph enable the device to be commissioned quickly, the reading diagnosis to be started easily, and a matchcode to be taught in without a PC. The parameterization of the scanner can be saved externally via a microSD memory card. A variety of reading distances can be covered by long-, mid- and short-range variants. All variants such as line or grid scanners, side light emission and oscillating mirrors as well as Ethernet versions are available.
Applications
Intelligent auto setup and multi-function pushbuttons save time during commissioningEasily execute firmware updates using the microSD memory card: no need for a PCEnhanced SMART technology reads damaged and partially obscured codes, increasing read ratesIncreased scanner intelligence enables sophisticated configuration of logical operations, reducing the control system programming effort. Data is then delivered in the desired formatReal-time code identification even at very high conveyor speedsIncreased scanning reliability due to high-performance computing power and high scanning frequencyIntegrated function buttons, e. g., for starting auto setup or reading quality evaluationIntegrated LED bar graphFlexible sorting, filtering, and logical functionsAdvanced, easy-to-use SOPAS configuration softwareHigh scanning frequency of up to 1,200 HzAdvanced remote diagnostics and network monitoring capabilities available over Ethernet
Note
Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
