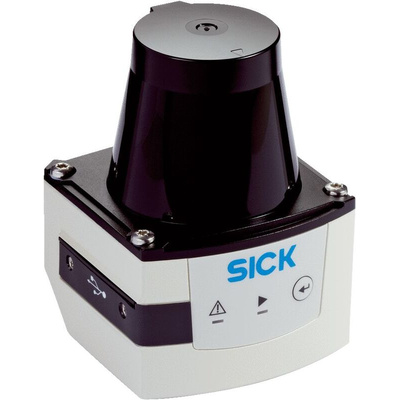

TIM351-2134001, Sick TIM3XX Series Laser Scanner LiDAR Sensor, 10m Max Range

Overview

At a glance

Your Benefit

The TiM3xx 2D LiDAR sensor uses HDDM technology, which minimizes machine downtimes thanks to high measurement accuracy and ambient light immunity. Its monitoring field can reach up to 10 m. Commissioning is quick and easy thanks to 16 preconfigured field sets (each with 3 fields), which are selected via the input circuit. The TiM3xx is flexible, cost-effective, and user-friendly. It is particularly suitable for mobile and stationary applications in factory automation and logistics automation. A version certified for safety-related applications according to EN ISO 13849-1:2015 is also available (TiM3xxS). Low power consumption and a compact and rugged design makes the TiM3xx ideal for use on mobile platforms.

Applications

Low operating costs
Flexible installation due to compact dimensions
Low implementation and replacement costs due to M12 x 12 or D-Sub male connector
Long battery service life when used in battery-operated vehicles
Easy commissioning thanks to preconfigured field sets
Low costs as a result of monitoring large fields (up to 235 m²) with just one scanner
No cabling required between sender and receiver
For TiM3xxS only: Can be used in safety-related applications
Incredibly compact, light, and economical sensor
Field evaluation using intelligent software algorithms
Configuration interface accessible from the side
when the device is mounted
Low power consumption (typically 4 W)
TiM3xxS only: Certified to Machinery Directive 2006/42/EG and DIN EN ISO 13849-1:2015

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - TIM351-2134001
