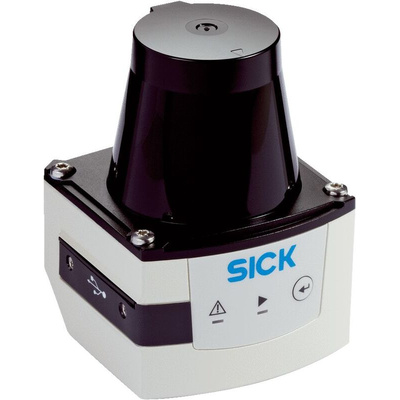

TIM571-2050101, Sick TIM5XX Series Laser Scanner LiDAR Sensor, 25m Max Range

Overview

At a glance

Your Benefit

The TiM5xx 2D LiDAR sensor is a non-contact ranging solution within the TiM series from SICK. Thanks to its HDDM technology, the TiM5xx is able to monitor large areas in indoor and outdoor applications – regardless of the surface or ambient light. Enclosed in a compact, rugged housing, the TiM5xx provides accurate measurement data from the scanned surface, making it possible to determine additional information such as the size and shape of objects. The TiM5xx is flexible for use in a variety of industrial applications as well as in building automation. The integrated Ethernet interface makes for easy implementation and remote maintenance. The TiM5xx is an efficient solution for stationary use as well as for use on automated guided vehicles (AVG) and in other mobile applications.

Applications

Reliable object detection independent of the surface and ambient light
IP 67 enclosure rating can be relied upon to withstand both indoor and outdoor conditions
Easy integration into compact automated guided vehicles (AGV) due to small size
Ethernet interface makes for easy implementation and remote maintenance
Can determine additional information such as object size, shape, etc. through measurement data output
Low implementation costs due to scalability: Sensor telegram is identical to sensor telegrams for 2D LiDAR sensors in the SICK portfolioMonitoring area of up to 1,470 m² with just one sensor
High ambient light tolerance due to HDDM technology
Rugged housing with up to an IP 67 enclosure rating
Low power consumption (typ. 4 W)
Compact design with a housing height of just 86 mm maximum
Integrated Ethernet interface
Long sensing range of up to max. 25 m
Industry-standard design and M12 male connector

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - TIM571-2050101
