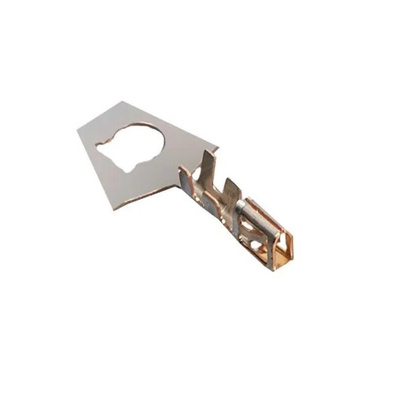

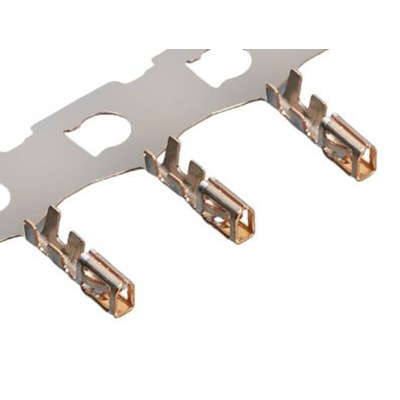

5011937000, Molex 501193 Series Female Crimp Terminal, 28AWG Min, 32AWG Max

Molex Crimp Terminal, Gold-Plated, 2.0A Maximum Current Per Contact - 501193 Series - 5011937000

Link a wire to your board in a flash using this crimp terminal from Molex. It handles conductors that range in size from 32 to 28AWG, so it's a versatile option to have at hand. The job or wiring is simple – just slip your wire into the sleeve and compress it to achieve full contact. For ease of assembly, you can slot the terminal into a housing (188-721). As it's compatible with signal, wire-to-wire and wire-to-board transmissions, this is a handy solution for your wire assembly.

Features & Benefits

• Tough gold plating resists corrosion
• Phosphor bronze contact material is highly conductive for reliable performance
• Maximum current per contact of 2.0A for low-power electrical systems

Applications

• Automotive engineering
• Telecommunications networks
• Computer peripherals
• HVAC systems

How durable is this terminal?

It has a maximum service life of 30 mating cycles, so you can rejig your setup multiple times with minimal risk of mechanical wear.

Datasheet - 5011937000

Line Drawing - 5011937000

Application Specification Sheet - 5011937000

Brochure - Shipbuilding
