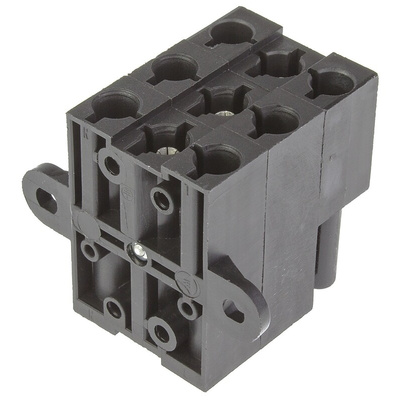

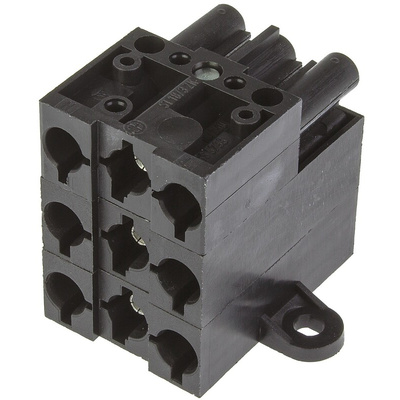

93.030.5153.0, Wieland ST18 Series Distribution Block, 5-Pole, Male to Female, 5-Way, 16A, IP20

ST18 Accessories

Rewireable connectors to increase flexibility
Direct link for close coupling modules

Note

The 5 way distribution block stock no.213-4694 is only suitable for use with jumper leads not with the rewireable connectors

Approvals

UL listed, CSA certified, OVE, SEV, N, UL, FI, VDE

Wieland GST Connector

The Wieland GST connector is an ST18 series male to female, 5-pole, 5-way distribution block connector with strain relief. It has an electric rating of 400V and 16A. Strain relief includes a top cover. This versatile connector range is ideal for general wiring distribution. For new installations or rewiring existing layouts this modular, flexible design offers an efficient and space-saving solution. Contacts are polarised and shrouded, the leading earth contact making first and breaking last. This is available in white colour.

Features and Benefits

• 0.5 to 2.5mm² wire size
• Contact material is made of brass (tin-plated)
• Direct link for close coupling modules
• Material flammability UL94V-2
• Operating temperature is 100°C
• Suitable for use with jumper leads not with the rewireable connectors

Applications

• Lighting application
• Construction sites
• Office wiring
• Shop displays and exhibition stand wiring

Certifications

• UL listed
• CSA certified
• OVE
• SEV
• N
• FI
• VDE
• IP 20 rated

ST 18/ST 16 Compact Connectors

This versatile connector range is ideal for general wiring distribution but is especially suited to lighting applications. For new installations or rewiring existing layouts this modular, flexible design offers an efficient and space saving solution. Plugs and sockets of various types enable a wide range of configuration. Other applications include office wiring, shop displays and exhibition stand wiring. Contacts are polarised and shrouded, the leading earth contact making first and breaking last.
