RS PRO, Plug Cable Mount SMA Connector, 50Ω, Straight Body

2138219
Производитель: RS PRO
Цена за шт.
1485.90 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

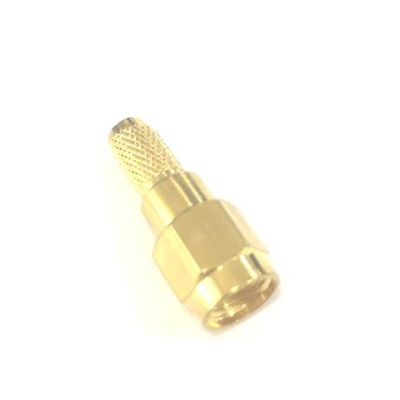

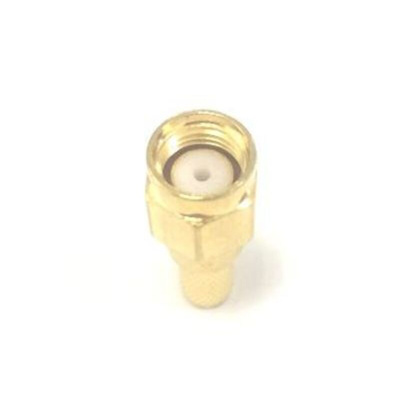

RS PRO Straight Cable Mount SMA Connector

RS PRO has increased its range of coaxial connectors, here we are proud to introduce a new addition to the series of SMA connectors. This male SMA connector is a sub-miniature radio frequency (RF) connector designed to interface with RG58 cables and pair with female SMA.

Where would you find them?

An SMA cable mount connector is one of many RF connector types used in conjunction with coaxial cable to carry high-frequency electrical signals with low losses. Common applications include telephone systems, microwave systems, and Wi-Fi systems.

Features and Benefits

• Straight body male SMA coaxial connector
• Fitted with gold-plated brass body and centre contact
• Sub-miniature size
• Cable mounting
• Characteristic impedance of 50 Ω
• Hexagonal shape for easy tightening and loosening
• Normal polarity
• Operating frequency up to 6 GHz
• Voltage rating of 500 V
• Operating temperature range of -45°C to +165°C
• Termination: Pressure welding

Installation

1. Ensure you have the correct impedance-rated cable to match the SMA connector, in this case, 50 Ω.
2. Slide the tubular body from the connector over the cable
3. Measure 10 mm from the tip of the cable, strip, and remove the outer jacket.
4. Fold the braided mesh layer back over the outer jacket
5. Measure 3 mm from the tip of the inner jacket, strip to reveal the central conductor

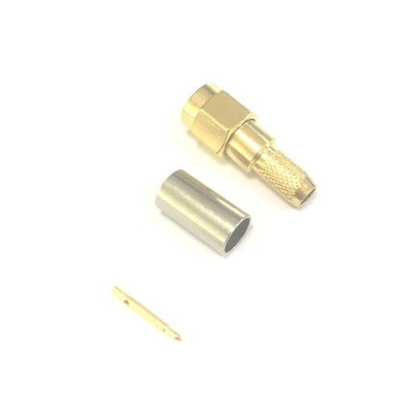

6. Place the contact pin over the conductor then crimp together using the right hole size on the crimp tool
7. Slide the crimp ferrule over the contact and push firmly until the pin is visible inside the connector.
8. Fold the braided mesh forward, slide the tubular body forward with a firm push.
9. Crimp together via tubular body with a crimp tool.

Compatible RG58 Coaxial Cables

• RS PRO White Unterminated RG58 Coaxial Cable, 50 Ω 4.95mm OD 500m; RS stock no: 521-7916

Applications

Telephone systems
Microwave systems
Wi-Fi Antenna systems

Why would you choose RS PRO for Coaxial Connectors?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards. They’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Техническая спецификация
pdfRS PRO Datasheet
Импеданс:
50Ом
Кабель - тип:
Коаксиальный
Ориентация корпуса:
Прямой
Переборка:
Нет
Покрытие корпуса:
Золото
Род:
Male
Тип коаксиального разъема:
SMA Разъем
Тип монтажа:
Кабельное крепление
Самовывоз со склада поставщика в Екатеринбурге Забираете сами или вызываете курьера
ТК Деловые Линии от 500 руб
Курьером EMS Почта России от 500 руб
Другой транспортной компанией По согласованию
