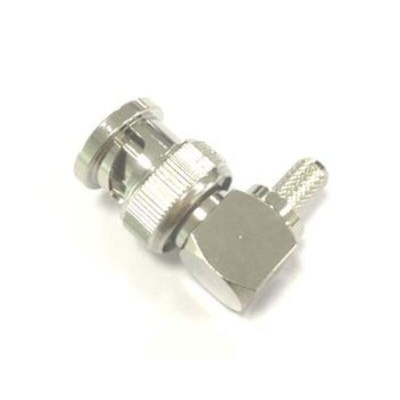

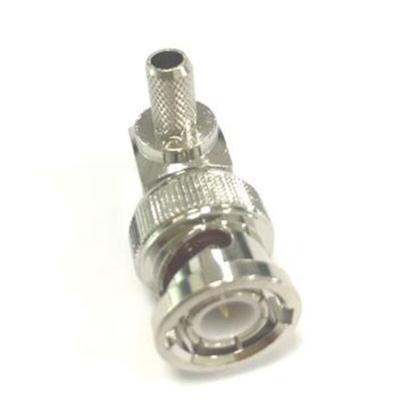

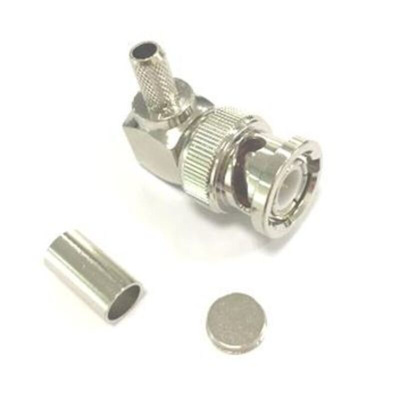

RS PRO, Plug Cable Mount BNC Connector, 50Ω, Clamp Termination, Right Angle Body

RS PRO BNC 50Ω Coaxial Connector

The RS PRO coaxial connectors keep on improving, here we are proud to introduce this BNC coaxial connector designed for use with RG58 cables. This connector has a rugged nickel-plated body and features a safe and convenient bayonet coupling system typical of BNC connectors. The centre pin contacts are gold plated for excellent electrical conductivity over a long service life.

Where would you use these coaxial connectors?

BNC connectors are used with coaxial cable for various RF signal applications. Although they are most commonly used in radio and television broadcasting applications, they can also be used in medical and test equipment. This BNC is a clamp end, which means that the crimp tool can be used to compress the connector onto the appropriate coaxial cable.

Features and Benefits

• BNC plug
• Nickel-plated body
• Right angled
• Brass with gold plated contacts
• Heavy-duty structural quality
• Termination: Clamp
• Gender: Male
• Impedance: 50Ω
• Operating frequency: 4GHz

Compatible Crimp Tool

• RS PRO Crimp Tool For BNC, TNC, and N-Type Connectors: RS stock no: 683-1627

Applications

• Antenna connection
• Cable Modems
• Telecom
• Medical Equipment
• Satcom
• CCTV

Why would you choose RS PRO for Coaxial Connectors?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

CE, ROHS
