RS PRO Flat Ribbon Cable, 10-Way, 1.27mm Pitch, 25m Length, Ленточный кабель

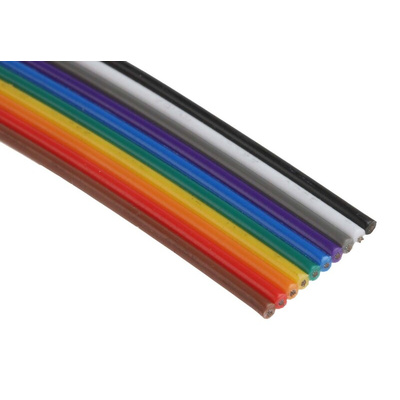

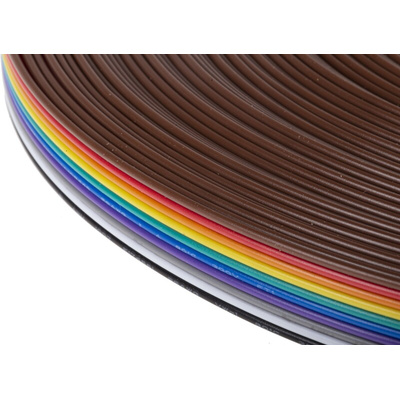

RS PRO 10 Way Unscreened Flat Ribbon Cable, 12.7 mm Width, 25 m

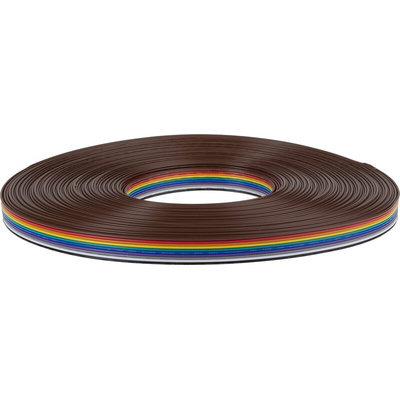

Are you connecting devices that transmit data like computers, audio or digital equipment? Make your life easier with this flat ribbon cable from RSO PRO. It's designed for mass termination with data-carrying devices and is 10-way, 12.7 mm wide with a pitch of 1.27 mm on a 25 m-long reel.

With a capacitance of 50 pF/m and characteristic impedance of 100 Ω, it's suitable for carrying data signals. As it's resistant to temperature changes, you can use it safely down to -20˚C and up to +80˚C. The cable is sheathed in PVC for insulation and comprises seven core strands measuring 0.15 mm² (AWG 26).

The cable's RoHS compliant, so it contains minimal hazardous substances. Safe to use for general-purpose wiring of electronic and electrical equipment, it meets the UL 1007 standard. The ribbon also complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, so it won't damage equipment through electrostatic discharge.

Features and Benefits

• 10-way flat ribbon cable
• Length of 25 m
• Used for mass termination in computer, audio and digital equipment
• Unscreened
• Width of 12.7 mm
• Pitch of 1.27 mm
• Voltage rating of 300 V
• Seven-stranded conductors have a cross-sectional area of 0.15 mm² (AWG26)
• Characteristic impedance of 100 Ω is suitable for data transmission
• Capacitance of 50 pF/m
• Minimum operating temperature of -20°C without cracking
• Maximum operating temperature of +80°C without melting
• Multicoloured sheath
• Conforms to standards UL 1007 (general purpose internal wiring), ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 (electrostatic discharge) and RoHS (hazardous substances)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
